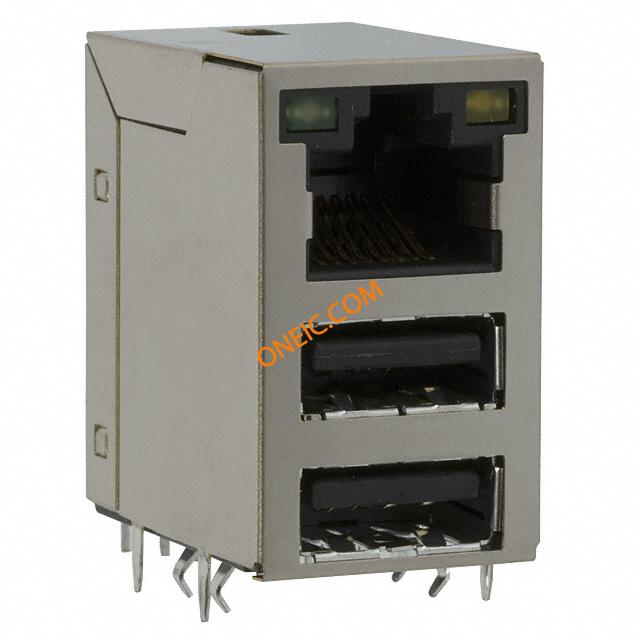

JW0-0009NL
| Manufacturer | |
| Description | Conn RJ-45/Dual USB F/F/F 10/4/4 POS Solder RA Thru-Hole 22 Terminal 3 Port Tray USB Connectors USB/RJ45 COMBO 10/10 CONN MAGJACK 3PORT 100 BASE-TX |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | USB Type A Connectors | Lead Time | 84 Days |
| Subcategory | Connector Interface | Product Category | USB Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage - Supply | USB | ||
Mechanical

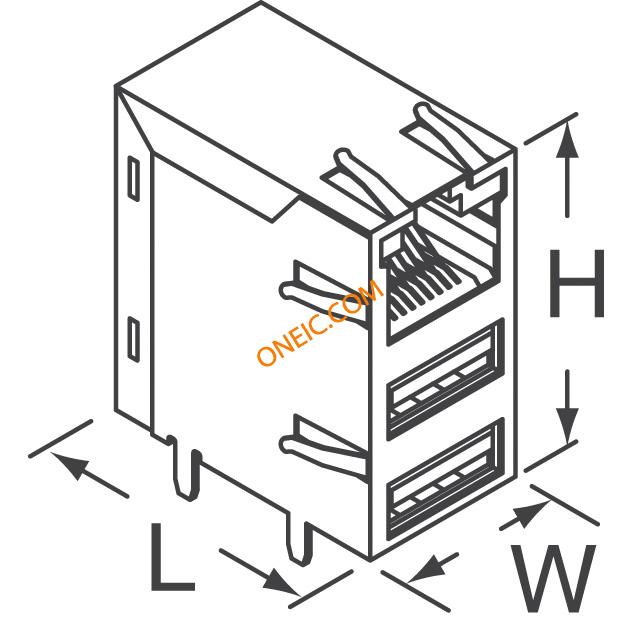

| Depth | 27.43 | Height | 31 |
| Weight | 0.285719 oz | LED Color | Green - Yellow |
| Packaging | Tray | Shielding | Shielded |
| Orientation | 90° Angle (Right) | Termination | Solder |
| Mounting Type | Through Hole | Tab Direction | Up |
| Connector Type | USB Type A/RJ45 combo stack | Contact Finish | Gold |
| Number of Rows | 3 | Shield Material | Brass |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 18.82 | Height Above Board | 1.220" (31.00mm) |
| Number of Contacts | 10/4/4 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | RJ-45/Dual USB | Gender | F/F/F |
| Features | Board Lock | Applications | 10/100 Base-TX |
| Number of Ports | 3 | Number of Cores per Jack | 5 |
| For Use With/Related Products | JW0-0009 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
