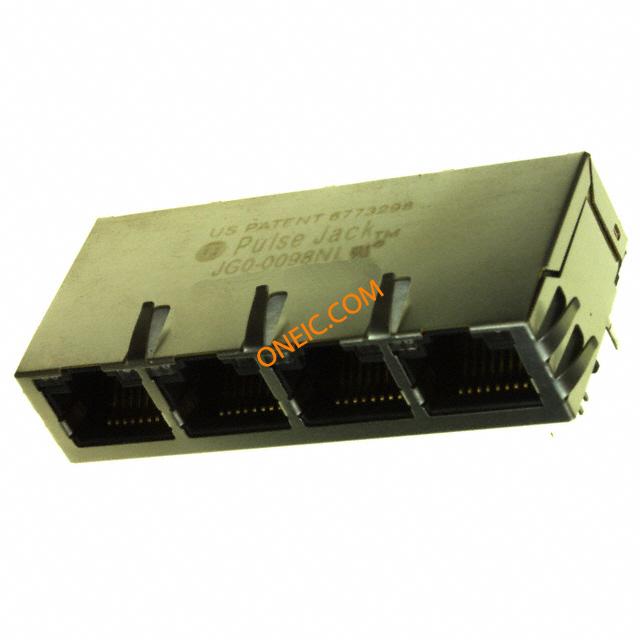

JG0-0098NL
| Manufacturer | |
| Description | Conn Telephone/Telecom F 32 POS Solder RA Thru-Hole 40 Terminal 4 Port CONN MAGJACK 4PORT 1000 BASE-T Modular Connectors / Ethernet Connectors 1X4 GIGABIT CONN, BST, W/LEDS |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Connector Telephone and Telecom |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Mechanical
| LED Color | Green, Amber - Green, Amber | Packaging | Tray |
| Shielding | Shielded, EMI Finger | Orientation | 90° Angle (Right) |
| Termination | Solder | Mounting Type | Through Hole |
| Tab Direction | Up | Connector Type | RJ45 |
| Contact Finish | Gold | Number of Rows | 1 |
| Shield Material | Copper Alloy | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Termination Style | Through Hole |
| Height Above Board | 0.545" (13.84mm) | Number of Contacts | 32 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Telephone/Telecom | Gender | F |
| Features | Board Guide | USOC Codes | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX | Number of Ports | 4 |
| Number of Cores per Jack | 8 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
