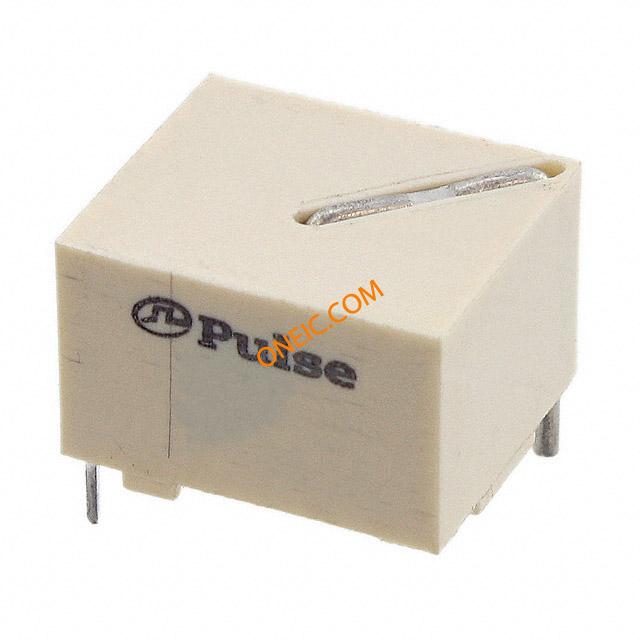

FIS155NL
| Manufacturer | |
| Description | Current Transformer 1:500 4000Vrms 16Ohm Sec. DCR 25000mA Through Hole Current Transformer 1:500 4000Vrms 16Ohm Sec. DCR 25000mA Prim. 5Term. PC Pin Thru-Hole FIS THT CST 1:500 Ip:25A XFRMR CURR SENSE 25A 1:500 T/H Current Transformer Sensors CURRENT SENSE XFMR |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 930 | Lead Time | 84 Days |
| Unit Pack | 30 | Subcategory | Current Transformer |
| Product Category | Current Transformer Sensors | Standard Package | Bulk |
| Factory Pack Quantity | 30 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 500 KHz | Inductance | 470000µH |
| Frequency Range | 500000Hz | Current - Output | 25000 mA |
| DC Resistance (DCR) | 16Ohm | Voltage - Breakdown | 4000Vrms |
| Voltage - Isolation | 4kV | DC Resistance (DCR) - Secondary | 16 Ohm |
| Turns Ratio - Primary:Secondary | 1:500 | ||
Mechanical
| Depth | 15 mm | Width | 15mm |
| Height | 12mm | Length | 15mm |
| Packaging | Tray | Lead Style | PC Pin |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Length - Overall | 17.6 mm | Transformer Type | Current Sense Transformer |
| Number of Contacts | 5 | Number of Positions | 5 |
| Supplier Device Package | CASE | ||
Product Info
| Matchcode | INDCSTFIS155 | Technology | SWITCH |
| Standard Leadtime | 14 weeks | For Use With/Related Products | FIS155 |
Environmental
| Operating Temperature | -40C to 125C | ||
