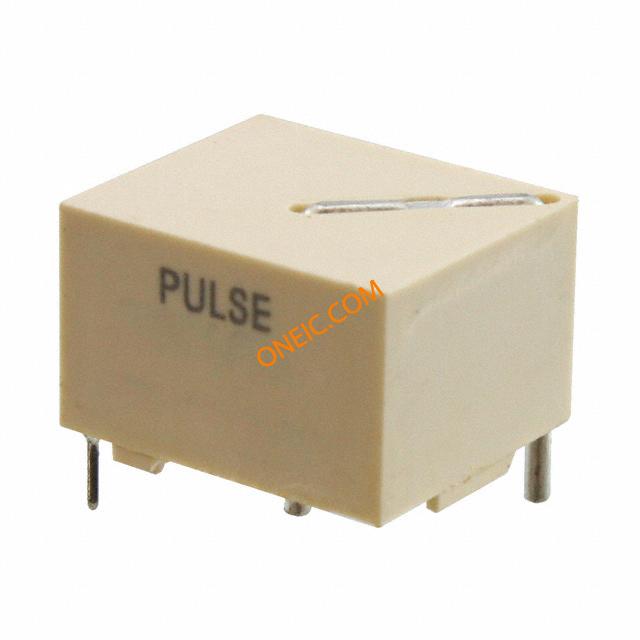

FIS115NL
| Manufacturer | |
| Description | Current Transformer 1:100 4000Vrms 2Ohm Sec. DCR 25000mA Through Hole Current Transformer 1:100 4000Vrms 2Ohm Sec. DCR 25000mA Prim. 5Term. PC Pin Thru-Hole FIS THT 1:100 Ip=25A XFRMR CURR SENSE 25A 1:100 T/H Current Transformer Sensors CURRENT SENSE XFMR |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 30 | Lead Time | 84 Days |
| Unit Pack | 30 | Subcategory | Current Transformer |
| Product Category | Current Transformer Sensors | Standard Package | Bulk |
| Factory Pack Quantity | 30 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 500 KHz | Inductance | 18000µH |
| Frequency Range | 500000Hz | Current - Output | 25000 mA |
| DC Resistance (DCR) | 2Ohm | Voltage - Breakdown | 4000Vrms |
| Voltage - Isolation | 4kV | DC Resistance (DCR) - Secondary | 2 Ohm |
| Turns Ratio - Primary:Secondary | 1:100 | Voltage - Secondary (Full Load) | 4000 V |
Mechanical
| Depth | 15 mm | Width | 15mm |
| Height | 12mm | Length | 15mm |
| Packaging | Tray | Lead Style | PC Pin |
| Hole Diameter | 5mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Length - Overall | 17.6 mm |
| Transformer Type | Current Sense Transformer | Number of Contacts | 5 |
| Number of Positions | 5 | Supplier Device Package | CASE |
Product Info
| Matchcode | INDCSTFIS115 | Technology | SWITCH |
| Standard Leadtime | 16 weeks | For Use With/Related Products | FIS115 |
Environmental
| Operating Temperature | -40C to 125C | ||
