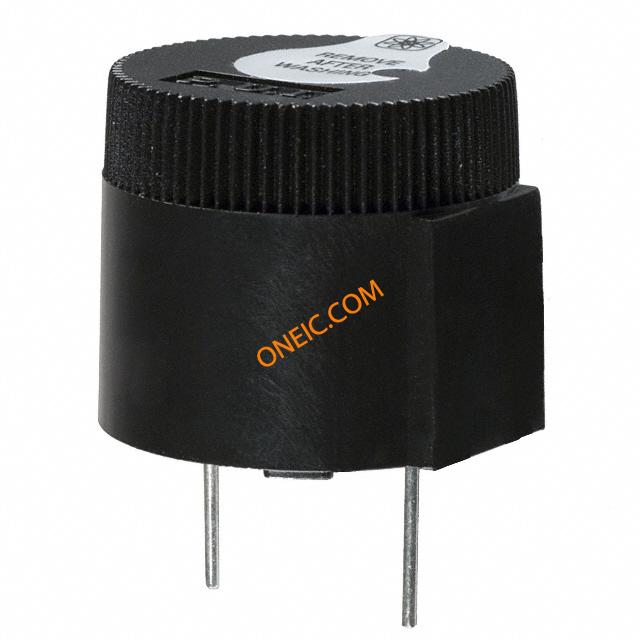

X-2629-TWT-R
| Manufacturer | |
| Description | Audio Indicator Piezo 12VDC 35mA Pin 5VDC 2400Hz to 3400Hz Through Hole Audio Indicators & Alerts 107dBA 2900Hz 12Vdc X-2629 2,9KHZ 26MM THT BUZZER PIEZO 12VDC 25MM PC MNT |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 198 | Product | Indicators |
| Unit Pack | 99 | Product Category | Audio Indicators & Alerts |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Frequency | 2900 Hz +/- 500 Hz | Input Type | DC |
| Voltage Range | 5 ~ 14V | Operating Mode | Continuous |
| Voltage Rating | 12 Vdc | Frequency - Max | 3400 Hz |
| Frequency Range | 2400 to 3400 Hz | Output Function | Continuous |
| Current - Output | 35mA | Driver Circuitry | Indicator, Internally Driven |
| Current Rating (Max) | 35 mA | Sound Pressure Level (SPL) | 107 dBA |

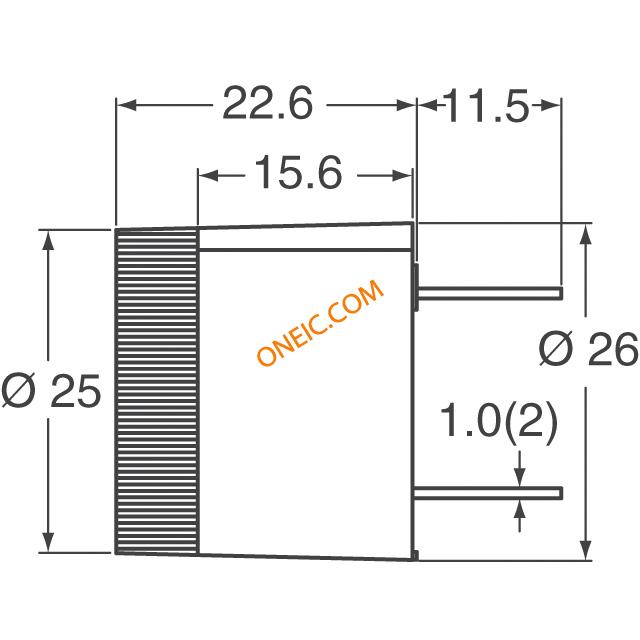

Mechanical

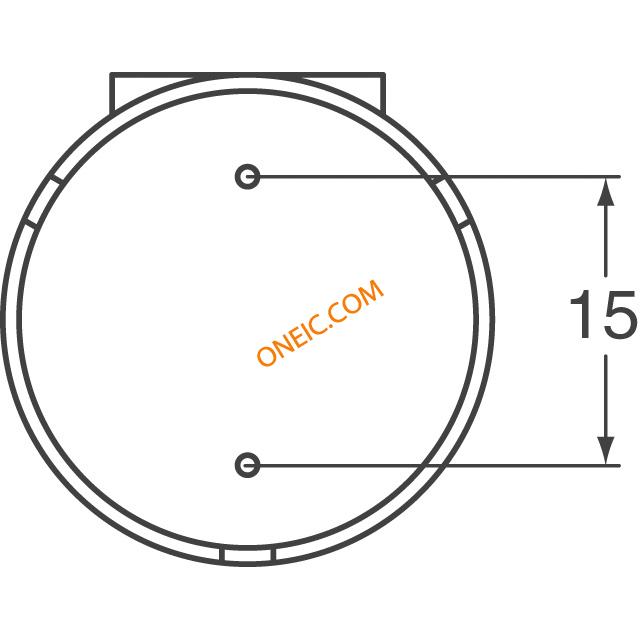

| Depth | 25 mm | Pitch | 15mm |
| Width | 25 mm | Height | 22.8 mm |
| Length | 26 mm | Packaging | Bulk |
| Termination | Pin | Length - Pin | 11.5mm |
| Mounting Type | Through Hole | Length - Overall | 26 mm |
| Size / Dimension | 26 mm L x 25 mm W x 22.8 mm H | Exterior Housing Material | YESy/n |
Product Info
| Tone | Continuous | Type | Indicator |
| Series | X | Washable | Yes |
| Matchcode | SIGP2,9KO | Technology | Piezo |
| Standard Leadtime | 10 weeks | Other Specifications | YES |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40°C ~ 85°C |
