AT-4228-TWT-F-R
| Manufacturer | |
| Description | Audio Transducer Piezo 12Vp-p 7mA Pin 3Vp-p 2300Hz to 3300Hz Through Hole BUZZER PIEZO 12V 42MM PC MOUNT Speakers & Transducers 2800Hz 92dBA 12Vpp |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Transducers | Product Category | Speakers & Transducers |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Frequency | 2.8kHz | Input Type | peak-peak Signal |
| Voltage Range | 3 ~ 28V | Operating Mode | Continuous |
| Voltage Rating | 12 Vp-p | Frequency - Max | 3300 Hz |
| Frequency Range | 2300 to 3300 Hz | Current - Output | 7mA |
| Driver Circuitry | Transducer, Externally Driven | Voltage - Supply (Min) | 12 V |
| Capacitance @ Frequency | 25000pF @ 2.8kHz | Sound Pressure Level (SPL) | 92 dBA |
Mechanical

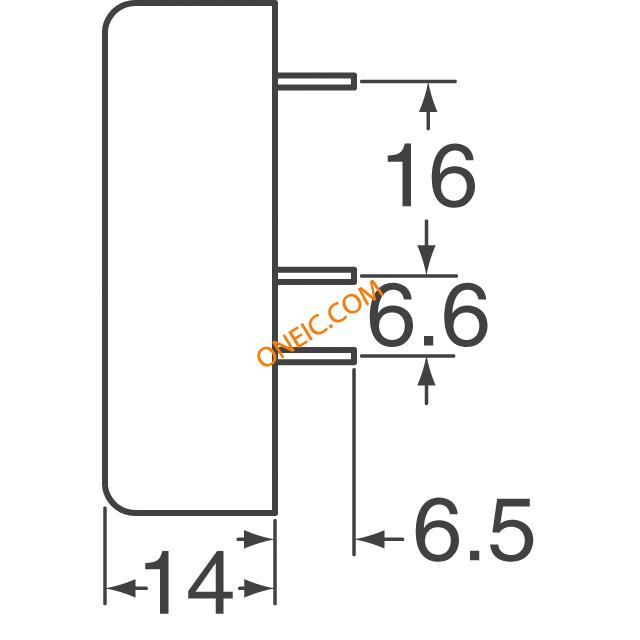

| Depth | 14 mm | Shape | Round |

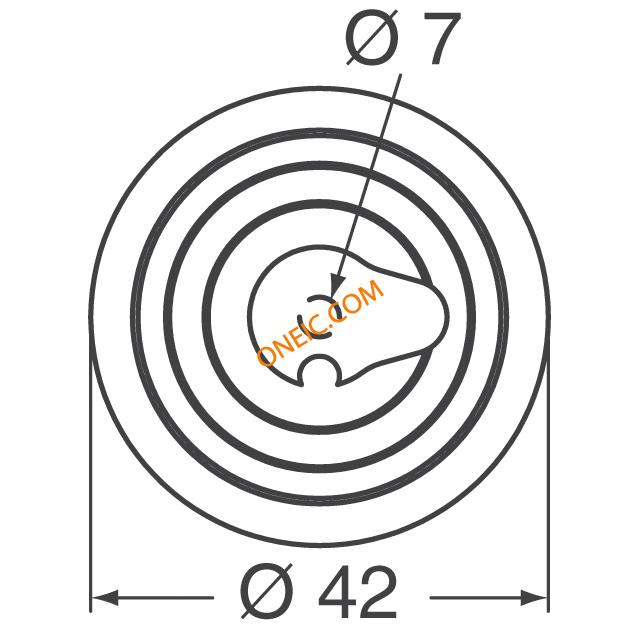

| Height | 14 mm | Diameter | 42 mm |
| Packaging | Bulk | Termination | Pin |
| Mounting Type | Through Hole | Size / Dimension | Circular - 42.00mm Dia x 14.00mm H |
| Termination Style | Solder Pin | ||
Product Info
| Type | Transducer | Series | AT |
| Washable | Yes | Technology | Piezo |
Environmental
| Operating Temperature | -30°C ~ 85°C | ||
