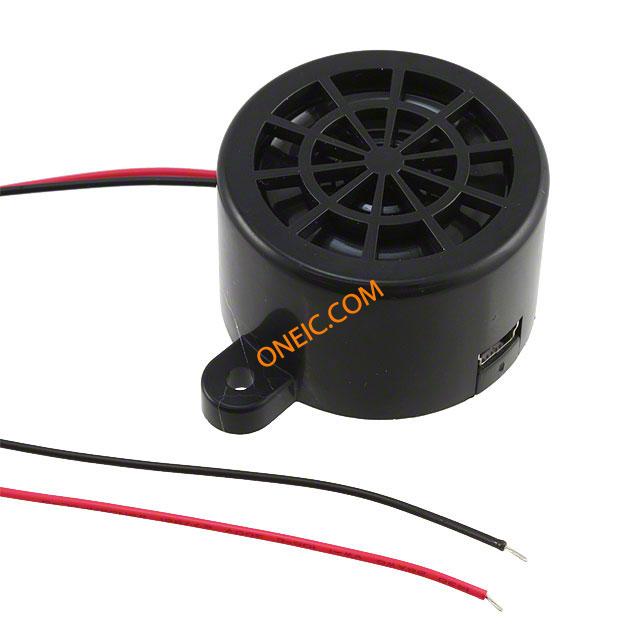

API-4260-LW150-R
| Manufacturer | |
| Description | AUDIO RECORDABLE INDICATOR 100 DBA Audio Indicators & Alerts AUDIO RECORDABLE INDICATOR 100 DBA RECORDABLE INDICATOR 100DB 12VDC API-4260 PROGRAMMABLE 0,1-6kHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Programmable Indicator | Product Category | Audio Indicators & Alerts |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Frequency | 100 Hz to 6000 Hz | Input Type | DC |
| Voltage Range | 7 ~ 24V | Operating Mode | Programmable, USB |
| Voltage Rating | 12 VDC | Current - Output | 350mA |
| Driver Circuitry | Indicator, Internally Driven | Current Rating (Max) | 350 mA |
| Sound Pressure Level (SPL) | 100 dB | ||
Mechanical
| Width | 25 mm | Length | 60 mm |
| Diameter | 42 mm | Packaging | Bulk |
| Termination | Wire Leads | Mounting Type | Flange |
| Size / Dimension | 60 mm L x 25 mm W | Termination Style | Lead Terminal |
| Exterior Housing Material | YES y/n | ||
Product Info
| Tone | Continuous | Type | BUZZER |
| Series | INDICATOR | Washable | No |
| Technology | Piezo (Programmable) | Other Specifications | YES |
Environmental
| Operating Temperature | -20°C ~ 60°C | ||
