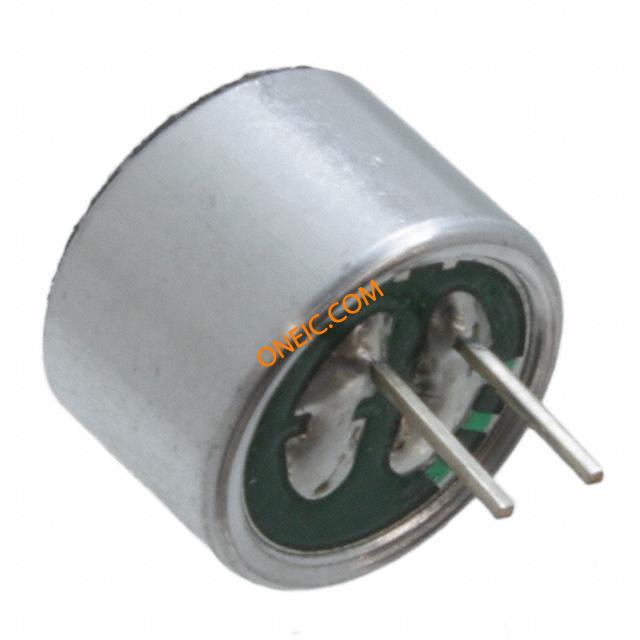

AOM-6738P-R
| Manufacturer | |
| Description | MICROPHONE -38DB1.5VDC .5MA 2.2KOHM Microphones 2.2kOhm x 9.7mm AOM MICRO OMNI -38dB 1,5Vdc MIC COND ANALOG OMNI -38DB |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 200 | Unit Pack | 100 |
| Product Category | Microphones | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Impedance | 2.2 kOhms | S/N Ratio | 60dB |
| Output Type | Analog | Sensitivity | - 38 dB +/- 3 dB |
| Voltage Rating | 1.5V | Current - Output | 500µA |
| Current Rating (Max) | 0.5mA | Voltage - Supply (Min) | 1.5 V |
Mechanical
| Depth | 6.7 mm | Shape | Circular |
| Height | 6.7mm | Diameter | 9.7 mm |
| Packaging | Bulk | Termination | PC Pins |
| Height (Max) | 6.90mm | Mounting Type | SOLDERPADS |
| Port Location | Top | Length - Overall | 9.7mm |
| Size / Dimension | 9.70mm Dia | Termination Style | Pin |
| Exterior Housing Material | YESy/n | ||
Product Info
| Type | MICROPHONE | Series | AOM |
| Direction | Omnidirectional | Matchcode | SIGP38DB |
| Technology | CONDENSER | Standard Leadtime | 10 weeks |
| Other Specifications | Omnidirectional | ||
Environmental
| Seal Rating | None | ||
