VLA504-01
| Manufacturer | |
| Description | IC IGBT GATE DVR ISO 3A IC, IGBT GATE DRIVER, 3A, 0.4 uS, SIP-12 |
| Category |
Business
| Standard Package | 21 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
Electrical
| Delay Time | 400ns | Input Type | Non-Inverting |
| Voltage - Supply | 14 V ~ 15 V | Number of Outputs | 1 |
| Current - Peak Output | :3A | Delay Time - Propagation | :400ns |
| Current - Peak Pulse (10/1000us) | 3A | High Side Voltage - Max (Bootstrap) | 1200V |
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Case Color | :SIP | Mounting Type | Through Hole |
| Number of Pins | :12 | Package / Case | 14-SIP (12 Leads) |
| Material Finish | :- | Supplier Device Package | Module |
Product Info
| Type | :IGBT | Configuration | High or Low Side |
| Module/Board Type | :- | Number of Configurations | 1 |
Environmental
| Operating Temperature | -20°C ~ 60°C | ||
Documents & Media
Similar Parts

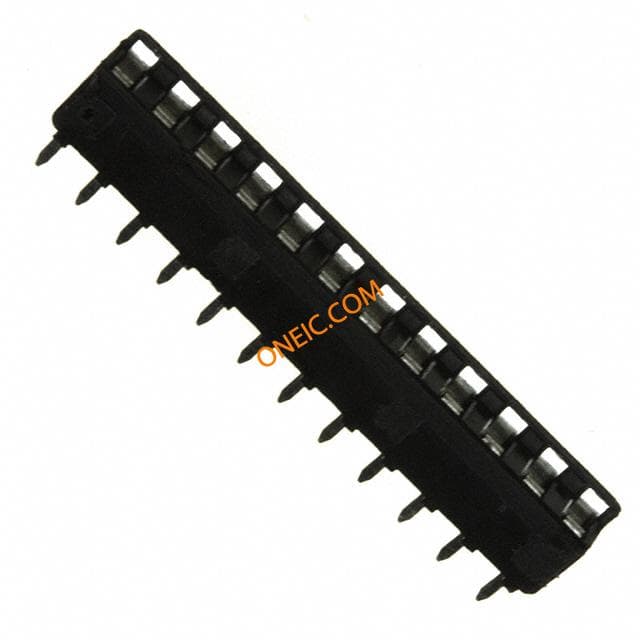

643644-1
te connectivity / amp
Conn SIP Socket SKT 12 POS 2.54mm Solder ST Thru-Hole Tray SIP Sockets CONN IC SOCKET 12POS SIP TIN IC & Component Sockets SIP 12 POS .100 TIN Conn SIP Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Tray Conn SIP Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Tray Product Highlights:Number of Positions = 12Contact Style = Stamped + FormedLeg Style = StandardBeryllium Copper Contact MaterialTin Contact Mating Area PlatingSearch Keywords:single in-line IC package, NIC, Network Interface Cards, PC Cards, IC sockets, pc board mount, hybrid, EIA RS-415, MIL-S-83734, Table 23.1, UL 1410, 12 Position 2.54 mm Centerline Through Hole Sip Socket
BG1A-KA
Powerex Inc
KIT DEV BOARD FOR IGBT
BG2B-3015
Powerex Inc
KIT DEV BOARD 2CN 3A FOR IGBT UNIVERSAL GATE DRIVE PROTOTYPE BOARD DEV KIT, VLA504-01, VLA106-15242, WITH BARE BG2B

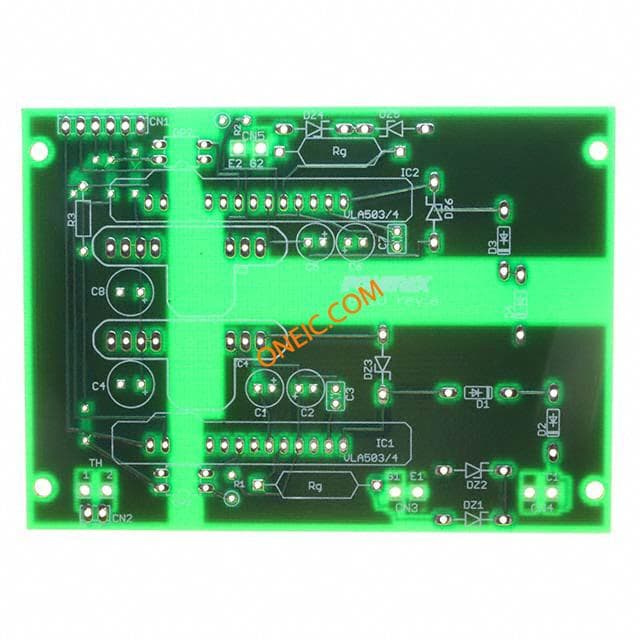

BG2D
