(MAP80-4003)
| Manufacturer | |
| Description | AC/DC Power Supply Quad-OUT 5V/15V/-5V/-15V 14A/3.5A/1A/1A 80W 14-Pin PWR SUP 80W +5V+15V-5V-15V OUT SWITCHING POWER SUPPLIES; MULTIPLE OUTPUT; 80 WATTS Linear and Switching Power Supplies 80W 5V 14A 15V 3.5A/ -5V 1A PowerSupply;AC-DC;5V@14A,15V@3.5A,-5V@1A,-15V@1A;90-135/175-264VIn;OpenFrame |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Product Category | Linear and Switching Power Supplies |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Approval Agency | CE, CSA, TUV, UL |
Electrical
| Frequency | 47 to 63 Hz | Efficiency | 80 % |
| Power - Max | 80 W | Output Power | 70 W |
| Power (Watts) | 80W | Power - Input | Switching (Open Frame) |
| Voltage Rating | 90 to 135|175 to 264 V | Line Regulation | 0.2%, 0.5% |
| Load Regulation | 1%, 2% | Current - Output | 14|3.5|1|1 A |
| Voltage - Supply | ±5V, ±15V | Number of Outputs | 4 |
| Power Supply Type | Switching (Open Frame) | Voltage - Output 3 | - 5 VDC |
| Power (Watts) - Max | 80W | Voltage - Isolation | 2600VDC |
| Current Rating (Max) | 2.5(rms) A | Voltage - Input (Min) | ±5V, ±15V |
| Current - Output (Max) | -5 VDC @ 1A | Current - Output / Channel | 3.5 A |
Mechanical
| Size | 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm) | Width | 4.2 in |
| Height | 1.8 in | Length | 7.2 in |
| Mounting Type | Screw | Mounting Style | Chassis |
| Length - Overall | 182.9 | Size / Dimension | 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm) |
| Number of Positions | 14 | Shell Size - Insert | 45.7 |
Product Info
| Type | Regulated | Style | U Frame |
| Series | MAP80 | Application | Commercial |
| Applications | Commercial | Output Configuration | Chassis Mount |
| Printed Circuit Board | 14 | ||
Environmental
| Operating Temperature | 0 to 70 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0009503031
molex
Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 3POS .156 W/RAMP
$0.0390
Details
0022012047
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/RAMP
$0.1021
Details

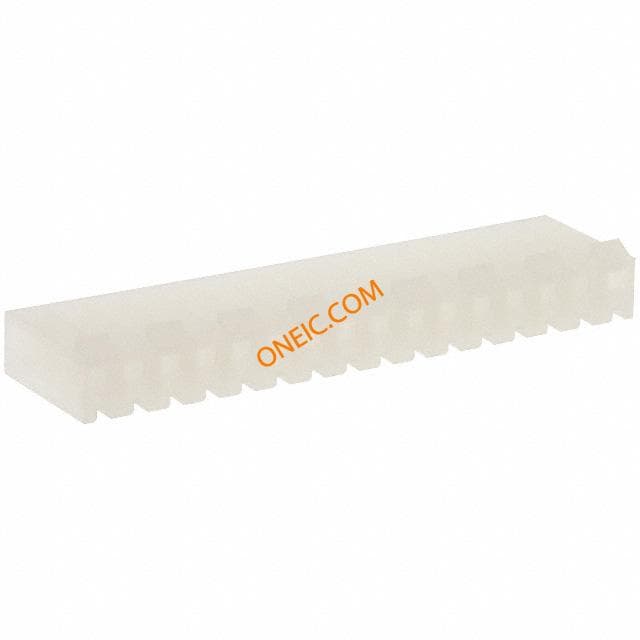

09-50-3161
