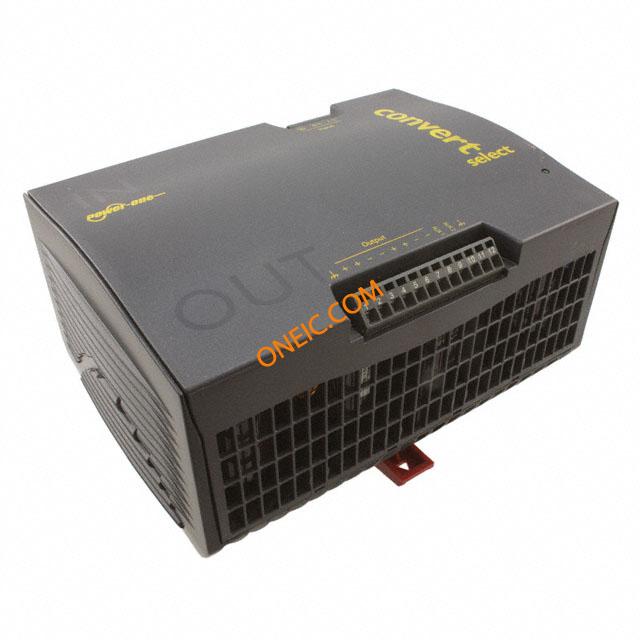

LXN2660-6G
| Manufacturer | |
| Description | DIN RAIL 494W 2X 24.7V DIN Rail Power Supplies 500W X-DIN-Rail Converters DUAL OUT |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | LXN2660-6 | Product Category | DIN Rail Power Supplies |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, cULus, EN, TUV |
Electrical
| Efficiency | 87% | Output Type | Isolated |
| Power (Watts) | 500W | Line Regulation | ±100mV |
| Load Regulation | -400mV | Current - Output | 24.7 VDC @ 10A |
| Number of Outputs | 2 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 494W | Voltage - Isolation | 2.8 kV |
| Voltage - Input (Min) | 24.7V, 24.7V | Current - Output / Channel | 10 A |
Mechanical
| Mounting Type | DIN Rail | Size / Dimension | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) |
Product Info
| Type | Standard Product | Series | X |
| Applications | Commercial | ||
Environmental
| Operating Temperature | -40°C ~ 60°C | ||
