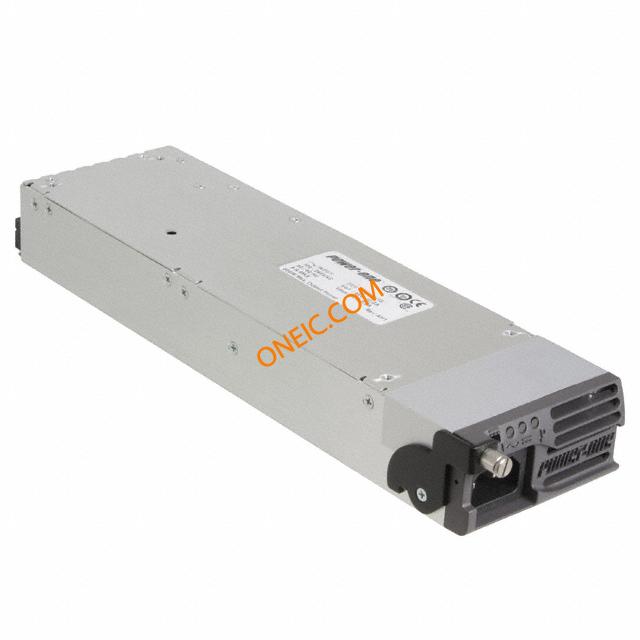

FNP600-48G
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 48V 12.6A 600W FRONT END AC/DC 600W 48V FNP600-48G, Front End PSU, 48V 12.6A PwrSupply;AC-DC;48VDC@12.6A,12VDC@0.5A;90-264VACIn;Enclosed;RackMnt;Industrial |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency | CE, CSA, EN, IEC, UL |
Electrical
| Noise | ±1% | Output | 48VDC@12.6A,12VDC@0.5A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 89.5(Typ) % | Power - Max | 600 W |
| Output Power | 600 W | Power (Watts) | 600W |
| Power - Rated | 600W | Power - Output | 600W |
| Voltage Rating | 90 to 264 V | Line Regulation | 0.17% |
| Load Regulation | 6% | Current - Output | 12.6 A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 605W | Voltage - Isolation | 4kV (4000V) |
| Current Rating (Max) | 14(rms) A | Minimum Load Required | No |
| Voltage - Input (Min) | 48V | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 40.6mm | Width | 85.8mm |
| Height | 40.6 mm | Length | 298.2mm |
| Weight | 1kg | Mounting Type | Desktop |
| Mounting Style | Desktop | Length - Overall | 298.2 mm |
| Primary Material | AC-DC | Size / Dimension | 11.74" L x 1.60" W x 3.30" H (298.2mm x 40.6mm x 83.8mm |
| Shell Size - Insert | 40.6 | ||
Product Info
| Type | Switching | Style | Enclosed |
| DELETED | Compliant | Features | Adjustable Output, I²C™ Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input |
| Applications | Commercial | Manufacturer | FNPSeries |
| Configuration | Enclosed | ||
Environmental
| Operate Time | 250000h | Operating Temperature | 0 to 70 °C |
| Maximum Temperature Limit | +50°C | Operating Temperature - Junction | 70C |
