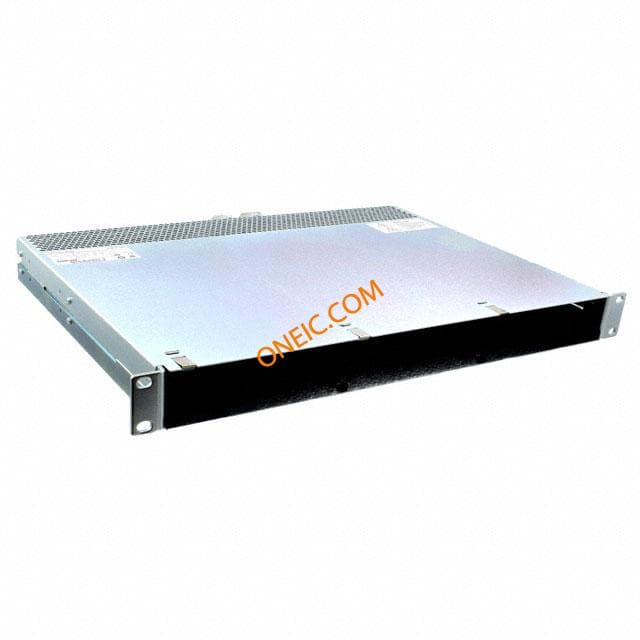

FNP1800-48G
| Manufacturer | |
| Description | AC/DC Power Supply Dual-OUT 48V/12V 39.2A/1A 1.812KW PWR SUP 1812W 48V FRONT END Power Supply; 1800 Watts; 48 VDC Main; Input VAC:85-105 / 108-264; Hot Swap Linear and Switching Power Supplies 1.812kW 48V 39.2A 12V 1A PowerSupply;AC-DC;48VDC@25.4A,12VDC@1A;85-264VACIn;Enclosed;RackMnt;Industrial |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Product Category | Linear and Switching Power Supplies |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency | CE, cUL, EN, TUV, UL |
Electrical
| Output | 12VDC@1A,48VDC@39.2A | Frequency | 47 to 63 Hz |
| Operation | PFC | Efficiency | 90(Typ) % |
| Power - Max | 1812 W | Output Power | 1.8 kW |
| Power (Watts) | 1800W | Power - Output | 1812W |
| Voltage Rating | 180 to 264|105 to 180|85 to 105 V | Current - Output | 39.2|1 A |
| Number of Outputs | 2 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 1812W | Current Rating (Max) | 20(rms) A |
| Voltage - Input (Min) | 12V, 48V | Current - Output / Channel | 1 A |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 141.2 mm | Width | 5.6 in |
| Height | 1.6 in | Length | 11 in |
| Mounting Type | Desktop | Mounting Style | Rack |
| Length - Overall | 279.4 mm | Primary Material | AC-DC |
| Size / Dimension | 11.00" L x 1.60" W x 5.60" H (279.4mm x 40.5mm x 141.2mm) | Shell Size - Insert | 40.5 |
Product Info
| Type | Switching | Style | Enclosed |
| Features | PFC | Application | Commercial |
| Applications | Commercial | Manufacturer | FNPSeries |
| Configuration | Enclosed | ||
Environmental
| Operating Temperature | 0 to 70 °C | Operating Temperature - Junction | 70C |
