点击放大查看

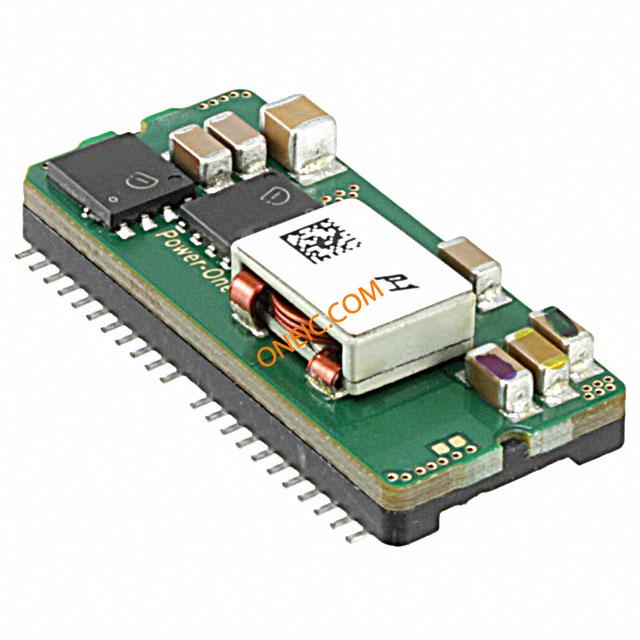

DP7015G-R100
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.7V to 5.5V 15A 25-Pin SMD T/R DIGITAL POL 15A, HORIZ, SMT DC/DC Converters DIGITAL POL 15A HORIZONTAL SMT |
| Category |
Business
| Product | Non-Isolated / POL | Tradename | dpwer |
| Other Names | 179-2576-1 | Standard Package | 100 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Isolation | Non-Isolated | Output Type | DC |
| Power - Max | 83W | Voltage Rating | 0.7 to 5.5 |
| Current - Output | 15A | Number of Outputs | 1 |
| Power (Watts) - Max | 83W | Voltage - Input (Min) | 0.7 ~ 5.5 V |
| Current - Output / Channel | 15 A | ||
Mechanical
| Width | 14 mm | Height | 8 mm |
| Length | 32 mm | Weight | 0.529109 oz |
| Packaging | Tape and Reel | Mounting Type | Surface Mount |
| Mounting Style | Chassis | Package / Case | Module |
| Length - Overall | 32 | Package Quantity | SMD |
| Size / Dimension | 1.26" L x 0.55" W x 0.31" H (32.0mm x 14.0mm x 8.0mm) | Number of Positions | 25 |
Product Info
| Type | Step Down | Series | DP7015 |
| Features | Digital, OCP, OTP, OVP, UVLO | Printed Circuit Board | 25 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
