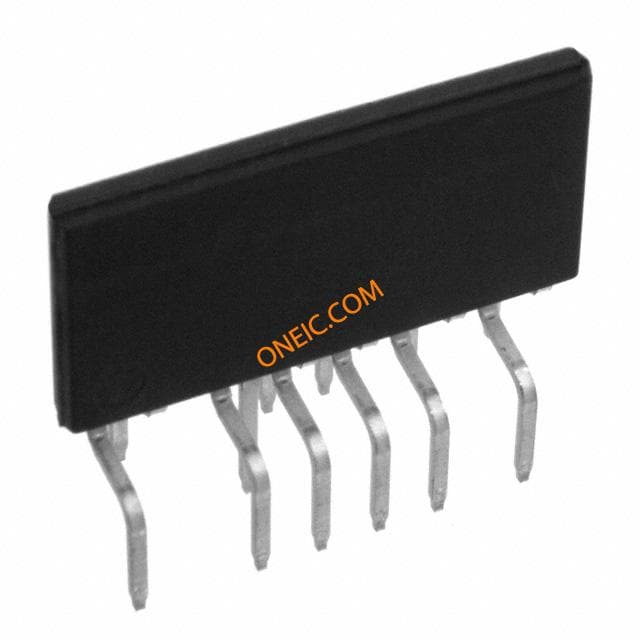

RDK-249
| Manufacturer | |
| Description | REFERENCE DESIGN FOR 14.5 W STANDBY AND 300 W MAIN POWER SUP KIT REF DESIGN PFS762HG Switching Power Supplies HiperTFS Ref Des Kit 14.W Stby, 300W PS TFS762HG, PSU, 300W, EVAL BOARD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Kits | Standard Package | 1 |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85423990 |
Electrical
| Output Power | 300 W | Voltage Rating | 300 VDC to 385 VDC |
| Number of Outputs | 2 | Number of Elements | :TFS762HG |
| Voltage - Input (Min) | 12 V | Current - Output / Channel | 25 A |
Mechanical
| Width | 41.91 mm | Length | 76.2 mm |
| Weight | 0.002 | Mounting Style | Chassis |
| Panel Mount Type | Open Frame | Size / Dimension | 76.2 mm L x 41.91 mm W |
Product Info
| Series | RDK | Contents | Board |
| Embedded | No | Features | :- |
| Kit Type | :Power Management | Kit Contents | :Eval Board TFS762HG |
| Main Purpose | Reference Design, PC Power Supply | Primary Attributes | 12V 25A, 5V 2.9A Outputs, 300 ~ 385 VDC Input |
| Utilized IC / Part | TFS762HG | Chipset Manufacturer | :Power Integrations |
| Application Specifics | :Power Supply | ||
