LNK603PG
| Manufacturer | |
| Description | CV/CC Switcher 7-Pin PDIP-C 2.5 W (85-265 VAC) IC OFFLINE SWIT OTP CV/CC 8DIP LNK603PG, Intelligent Power Switch CV/CC Switcher, 0.32A, 700V, 3.3W, 7-Pin, PDIP-8C AC/DC Converters 85-265 VAC 2.5W LinkSwitch II 交直流转换器, 600mA, 5 V 直流, 7引脚 DIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | LinkSwitch-II | Other Names | 596-1219-5 |
| Product Category | AC/DC Converters | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 0.32A | Voltage | 700V |
| Output Power | 3.3 W | Power (Watts) | 3.3W |
| Power - Rated | 3.3W | Voltage Rating | 6 V |
| Frequency Range | 59kHz ~ 73kHz | Current - Output | 214 mA |
| Current - Supply | 440 uA | Duty Cycle (Max) | 55 % |
| Output Isolation | Isolated | Voltage - Supply | 85 VAC |
| Current - Leakage | 214mA | Number of Outputs | 1 |
| Voltage - Breakdown | 700V | Current Rating (Max) | 600mA |
| Frequency - Switching | 66 kHz | Voltage - Output (Max) | 5 V 直流 |
Mechanical
| Width | 6.6mm | Height | 3.68mm |
| Length | 9.83mm | Packaging | Tube |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | 7 | Package / Case | 7PDIP-C |
| Package Cooled | PDIP-8C | Package Quantity | DIP |
| Size / Dimension | 9.83 x 6.6 x 3.68mm | Number of Positions | 7 |
| Supplier Device Package | DIP-8C | ||
Product Info
| Type | CV/CC Switcher | Series | LNK6x |
| Switch Type | CV/CC Switcher | Manufacturer | Power Integrations |
Environmental
| Operating Temperature | -40 to 150 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
RDK-160
power integrations
5 V, 1 A / 5V, 700 MA / 6V, 300 MA Power Management IC Development Tools LinkSwitch II Reference Design Kit KIT REF DESIGN LINKSWITCH 2
Details

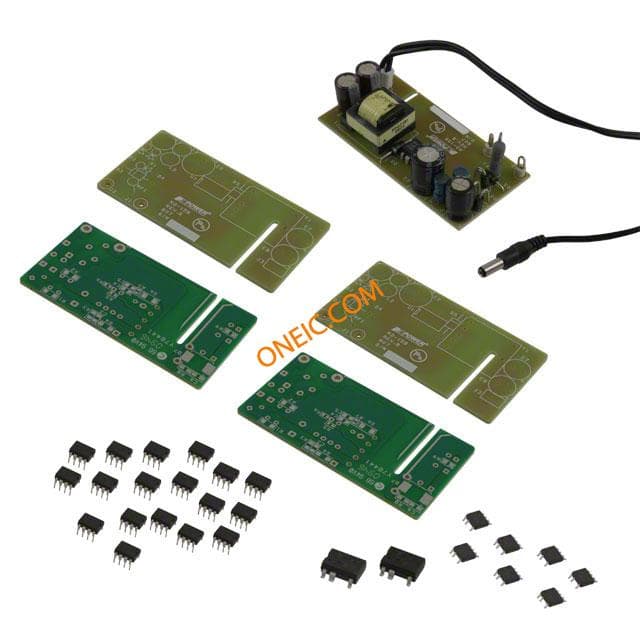

RDK-158
