DAK-93
| Manufacturer | |
| Description | AC-DC PEAK MODE POWER SUPPLY Power Management IC Development Tools ACDC peak mode power Supply PeakSwitch KIT DESIGN ACC PEAKSWITCH FAMILY Switching controller design kit, DAK-93, Power Integrations |
| Category |
Business
| Other Names | 596-1126 | Standard Package | 1 |
Compliance
| RoHS | No | ||
Electrical
| Output | 30 V @ 32 W (81 W Peak) | Power - Output | 32W |
| Current - Output | 1.07A | Regulator Topology | Flyback |
| Voltage - Input (Min) | 30V | ||
Mechanical
| Packaging | Bulk | Board Thickness | Bare (Unpopulated) and Fully Populated |
Product Info
| Contents | Board, Samples, Software | Main Purpose | AC/DC, Primary Side |
| Outputs and Type | 1, Isolated | Module/Board Type | PeakSwitch |
| Utilized IC / Part | PKS604, PKS605, PKS606 | Application Specifics | Power pack |
Documents & Media
Similar Parts

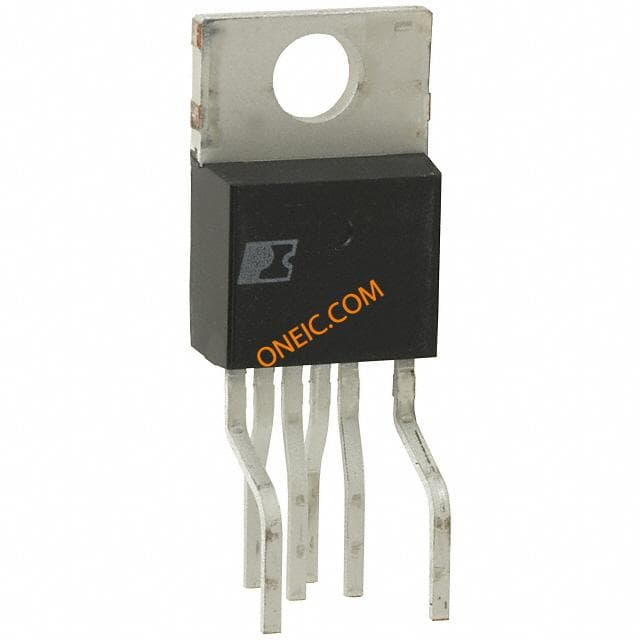

PKS604YN
