DAK-86
| Manufacturer | |
| Description | POE DC-DC CONVERTER - CLASS SELECTABLE Power Management IC Development Tools PoE DC-DC Converter KIT REF DES DPA 6.6W DC-DC CONV |
| Category |
Business
| Product | Reference Designs | Other Names | 596-1195 |
| Product Category | Power Management IC Development Tools | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Power - Output | 6.6W | Voltage Rating | 33 V to 57 V |
| Current - Output | 2 A | Regulator Topology | Flyback |
| Frequency - Switching | 400kHz | Voltage - Input (Min) | 3.3V |
Mechanical
| Packaging | Box | Board Thickness | Fully Populated |
Product Info
| Type | DC/DC Converters, Regulators & Controllers | Contents | Board, Samples, Software |
| Main Purpose | Special Purpose DC/DC, Power Over Ethernet | Outputs and Type | 1, Isolated |
| Tool Type Feature | DPA423G | Utilized IC / Part | DPA423, DPA424, DPA425 |
Environmental
| Operating Temperature | + 40 C | ||
Documents & Media
Similar Parts

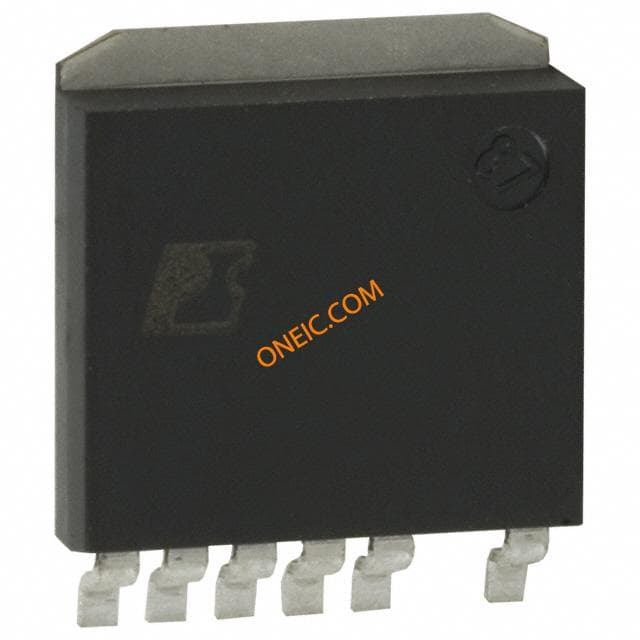

DPA424SN
Power Integrations
DC/DC Switching Converters 35W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK
DPA425SN
Power Integrations
Switching Converters, Regulators & Controllers 70W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK
DPA425SN-TL
Power Integrations
Switching Converters, Regulators & Controllers 70W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK
DPA425PN
power integrations
Highly Integrated DC-DC Converter 8-Pin PDIP Switching Converters, Regulators & Controllers 25.5W 36-75V DCIN IC CONV DC-DC DPA SWITCH 8DIP DPA425PN, DC-DC Converter,, 8-Pin PDIP DC/DC Converters 25.5W 36-75V DCIN
DPA423SN-TL
power integrations
Highly Integrated DC-DC Converter 7-Pin(6+Tab) SPAK T/R Switching Converters, Regulators & Controllers 18W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK

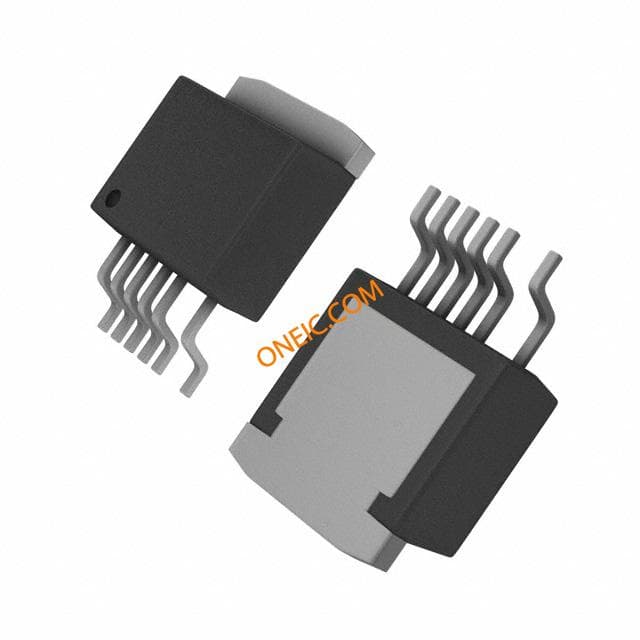

DPA424R-TL
