B-24-2
| Manufacturer | |
| Description | Test Leads 24 W/BAN PLUG RED Cable Assembly PVC 0.609m 18AWG Banana to Banana PL-PL PATCH CORD STKG BANA PLG 24" RED PatchCord,Stack-UpBananaPlugEachEnd,24Inch,Red Multi-Stacking Banana Plug Patch Cord, 24", Red |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 2045041 | Product Category | Test Leads |
| Standard Package | 5 | Factory Pack Quantity | 6 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 5000VDC (5kV) | Current Rating (Max) | 15A |
| Voltage - Input (Min) | 60VDC|30VAC | ||
Mechanical
| Color | Red | Length | 24 in |
| Cable Type | PVC | Wire Gauge | 18 AWG |
| Cable Length | 24.0" (609.60mm) | Length - Tip | 0.56in |
| Tip Material | Beryllium Copper | 1st Connector | Banana Plug, Single, Stackable |
| 2nd Connector | Banana Plug, Single, Stackable | Body Material | Banana Plug:Brass |
| Connector Type | Banana | Contact Finish | Nickel |
| Stacking Method | Multi-Stacking, Front and Vertical (Both Connectors) | Contact Material | Beryllium Copper |
| Length - Lead Wire | 24in | Insulation Material | Polypropylene |
| Color - Actuator/Cap | Red | Material - Insulation | Poly-Vinyl Chloride (PVC) |
Product Info
| Type | Patch Cord | Gender | PL-PL |
| Series | B | Contents | 1 Lead, Red |
| Features | Ideal for providing jumpers on chassis boxes | Function | Mates to Model 1581, 2854 or standard banana jack |
| Manufacturer | Pomona | Product Type | Test Lead |
| Configuration | Banana to Banana | Equipment Type | Patch Cords |
Environmental
| Operating Temperature | + 55 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
B-24-8
Pomona Electronics
Test Leads 24 BAN PTCH CRD GRY CORD PATCH BANANA PLUG 24" GRAY Cable Assembly PVC 0.609m 18AWG Banana to Banana PL-PL PatchCord,Stack-UpBananaPlugEachEnd,24Inch,Gray
$53.0808
Details

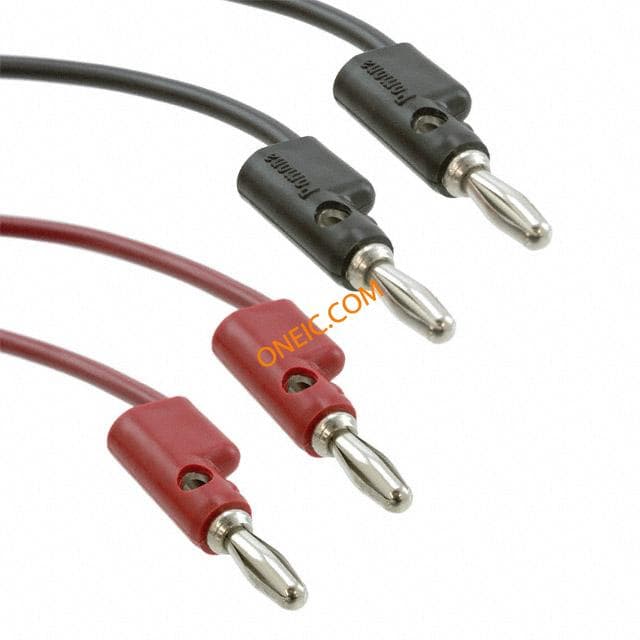

B-24-02
