72984
| Manufacturer | |

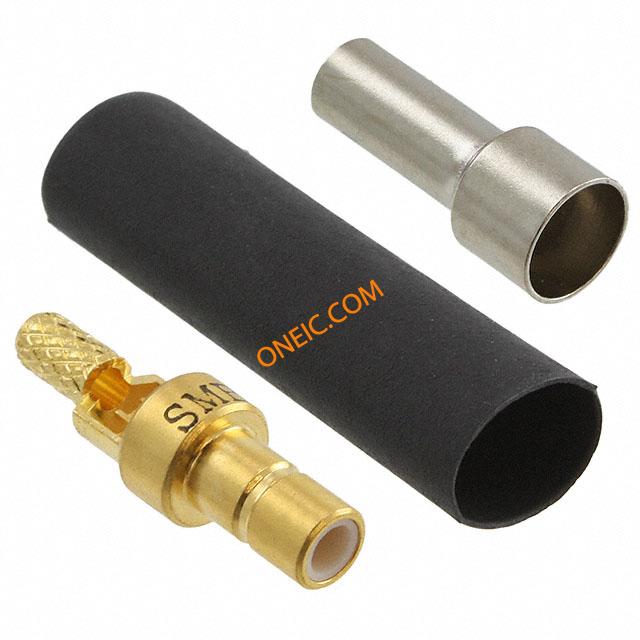

| Description | RF Connectors SMB JACK STRAIGHT CRIMP RG174 188 316 CONN SMB JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors SMB JACK STRAIGHT CRIMP RG174 188 316 SMBJACKSTRAIGHTCRIMP,RG174,188,316 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | 3094490 |
| Product Category | RF Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 50 Ohms | Voltage Rating | 250V |
| Frequency - Max | 3 GHz | ||
Mechanical
| Packaging | Bulk | Cable Type | RG-174, RG-188, RG-316 |
| Body Finish | Gold | Cable Group | RG-174, 188, 316 |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Gold | Connector Type | SMB Plug |
| Contact Finish | Gold | Fastening Type | Snap-On |
| Connector Style | SMB | Contact Material | Brass, Beryllium Copper |
| Housing Material | Brass | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Plug |
Product Info
| Gender | Plug (Male) | Polarity | Normal |
| RF Family/Standard | SMB | ||
Environmental
| Operating Temperature | - 65 C to + 165 C | ||
