72971
| Manufacturer | |

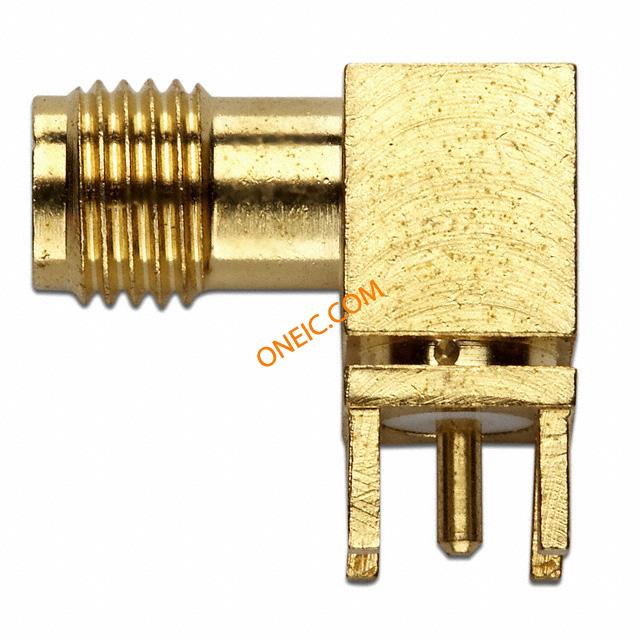

| Description | RF Connectors SMA JACK R/A PCB RECEPTACLE CONN SMA JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors SMA JACK R/A PCB RECEPTACLE RF/COAXIAL, SMA JACK, R/A, 50 OHM, SOLDER SMAJACKR/APCBRECEPTACLE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PCB Receptacles | Part # Aliases | 3094363 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 18GHz | ||
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Cable Type | :- | Body Finish | Gold |
| Orientation | Right Angle | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Threaded | Connector Style | SMA |
| Contact Material | Brass, Beryllium Copper | Termination Style | Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Right Angle |
Product Info
| Gender | Jack | Series | :- |
| Polarity | Standard | RF Family/Standard | SMA |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
