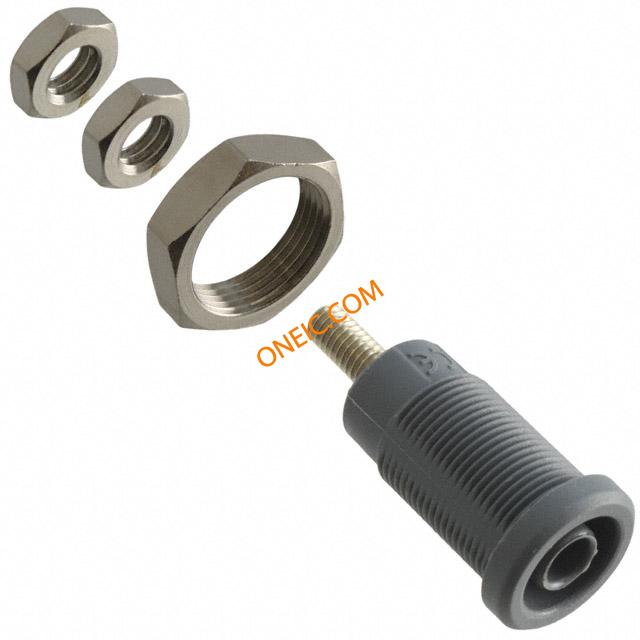

72930-8
| Manufacturer | |
| Description | PANEL MT IEC1010 4MM (0.16IN) JACK FOR SHEATHED PLUGS BANANA JACK PNL MNT 10/PK GRAY Test Plugs & Test Jacks GRAY BANANA JACK PNL MNT IEC1010 4mm BANANA JACK, 36A, SCREW, GRAY PANELMTIEC4MM(0.16IN)JACKFORSHEATHEDPLUG,HEXNUT,10/PKG,Gray |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 1 kV | Current Rating (Max) | 36 A |
Mechanical
| Color | Gray | Weight | 0.073 |
| Packaging | 10 per Bag | Insulation | Mating End Insulated |
| Termination | Threaded, External (Nut) | Body Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount | Contact Finish | Nickel |
| Mounting Style | Panel | Material - Body | Polyamide |
| Contact Material | Brass | Primary Material | Banana |
| Color - Connectors | :Grey | Contact Termination | :Screw |
| Plug/Mating Plug Diameter | Standard | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Banana Jack | Gender | Female |
| Series | :72930 | Manufacturer | 72930Series |
