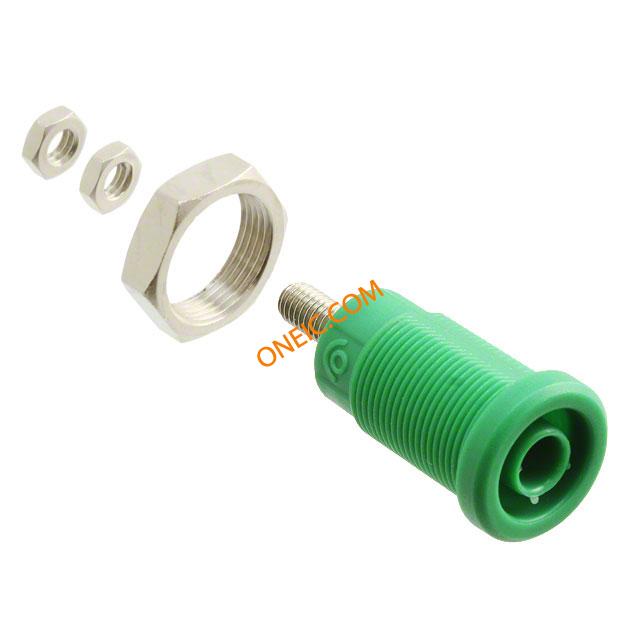

72930-5
| Manufacturer | |
| Description | 試験プラグと試験ジャック PANEL MT IEC 4MM (0.16IN)J GREEN PANEL MT IEC1010 4MM (0.16IN) JACK FOR SHEATHED PLUGS BANANA JACK PNL MNT 10/PK GREEN Test Plugs & Test Jacks PANEL MT IEC 4MM (0.16IN)J GREEN BANANA JACK, 36A, SCREW, GREEN PANELMTIEC4MM(0.16IN)JACKFORSHEATHEDPLUG,HEXNUT,10/PKG,Green |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 2541955 | Standard Package | 1 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 1 kV | Current Rating (Max) | 36 A |
Mechanical
| Color | Green | Weight | 0.073 |
| Packaging | 10 per Bag | Insulation | Mating End Insulated |
| Termination | Threaded, External (Nut) | Body Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount | Connector Type | Plug |
| Contact Finish | Nickel | Mounting Style | Panel |
| Material - Body | Polyamide | Contact Material | Brass |
| Primary Material | Banana | Color - Connectors | :Green |
| Contact Termination | :Screw | Insulation Material | Polyamide |
| Plug/Mating Plug Diameter | Standard | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Banana Jack | Gender | Female |
| Series | :72930 | Manufacturer | 72930Series |
| Equipment Type | Banana Jacks | ||
