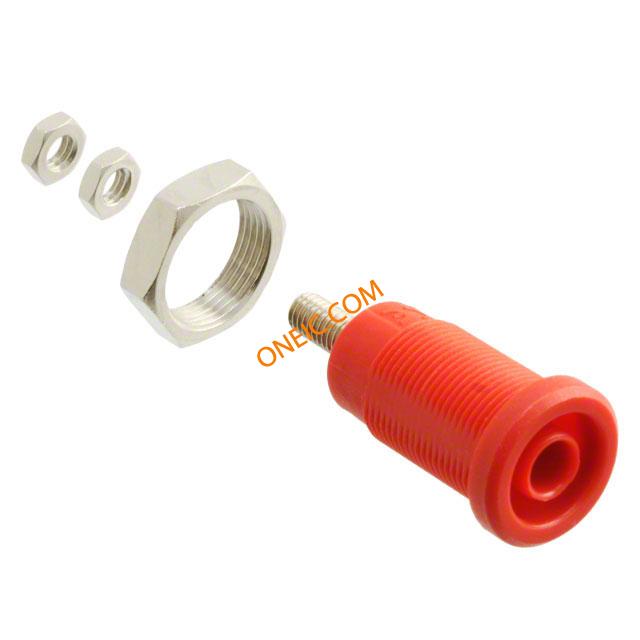

72930-2
| Manufacturer | |
| Description | 試験プラグと試験ジャック PANEL MT IEC 4MM (0.16IN)J Conn Banana Jack F 1 POS ST Panel Mount 1 Port BANANA JACK PNL MNT 10/PK RED Test Plugs & Test Jacks PANEL MT IEC 4MM (0.16IN)J BANANA JACK, 36A, SCREW, RED PANELMTIEC4MM(0.16IN)JACKFORSHEATHEDPLUG,HEXNUT,10/PKG,Red |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 2524783 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Voltage Rating | 1 kV | Current Rating (Max) | 36 A |
Mechanical
| Color | Red | Weight | 0.068 |
| Packaging | 10 per Bag | Insulation | Mating End Insulated |
| Termination | Threaded, External (Nut) | Body Material | Polyamide (PA), Nylon |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Nickel | Mounting Style | Panel |
| Material - Body | Polyamide | Contact Material | Brass |
| Primary Material | Banana | Color - Connectors | :Red |
| Number of Contacts | 1 | Contact Termination | :Screw |
| Plug/Mating Plug Diameter | Standard | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Banana Jack | Gender | F |
| Series | :72930 | Manufacturer | 72930Series |
| Equipment Type | Banana Jacks | Number of Ports | 1 |
