| Manufacturer | |

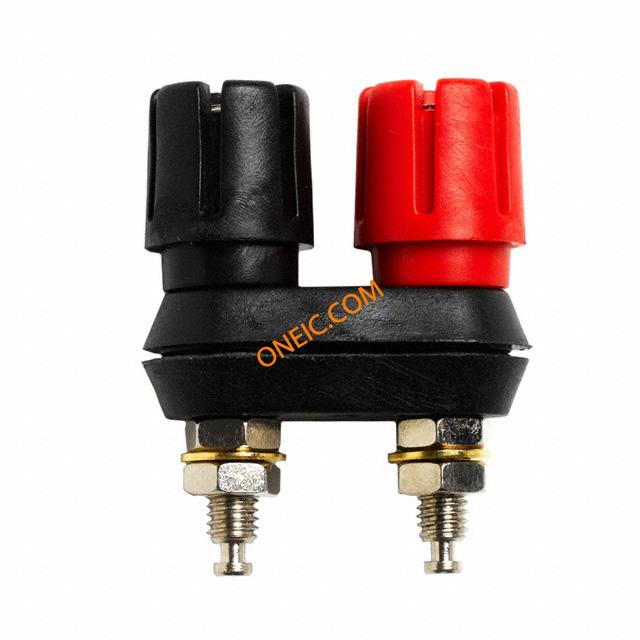

| Description | Test Plugs & Test Jacks Dual Binding Posts DUAL BINDING POSTS DOUBLE BINDING POST, 30A, BLACK BindingPost;DualBindingPost;30A;500VDC;Nickel-PlatedBrass;Nylon |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 2125957 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 30 A |
Mechanical
| Color | Red | Length | 1.983 in |
| Weight | 0.041 | Head Style | Fluted |
| Insulation | Insulated | Termination | Threaded and Turret |
| Connector Type | :Binding Post | Contact Finish | Nickel |
| Plating - Body | Nickel | Material - Body | Brass |
| Contact Material | Brass | Color - Connectors | :Black |
| Contact Termination | :- | Cross Hole Diameter | 0.154" (3.91mm) |
| Insulation Material | Nylon | Material - Insulation | Polyamide (PA), Nylon |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Double binding post with raised base | Series | :- |
| Equipment Type | Binding Posts | ||
Environmental
| Operating Temperature | + 70 C | ||
