点击放大查看

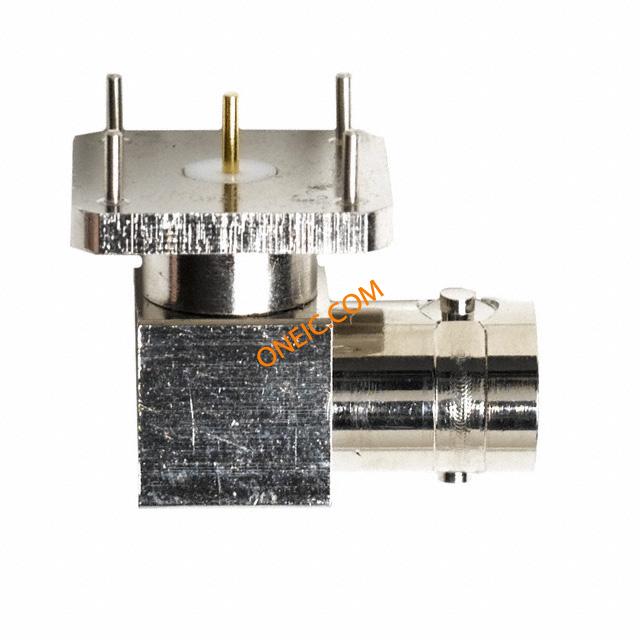

6748
| Manufacturer | |
| Description | RF Connectors BNC (F) PCB MOUNT R CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors BNC (F) PCB MOUNT R Connector,Bulkhead;75Ohms;RightAngle;BNCAdapter;Gold;Female;Brass;PTFE;Gold |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PCB Receptacles | Part # Aliases | 2121400 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 3GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Packaging | Bulk | Orientation | Right Angle |
| Termination | Solder | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Through Hole, Right Angle |
| Angle of Throw | RightAngle | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | 4-HoleFlange | Connector Style | BNC |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Solder |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Flange | ||
Product Info
| Type | PCBJack | Gender | Jack |
| Polarity | Standard | RF Family/Standard | BNC |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -65°C ~ 155°C | ||
