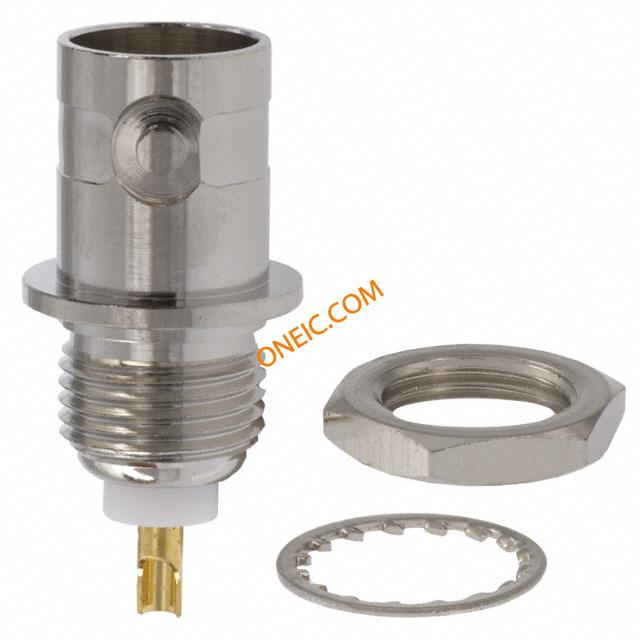

6745
| Manufacturer | |
| Description | RF Connectors BNC (F) BULKHEAD REC CONN BNC JACK STR 75 OHM SOLDER RF Connectors / Coaxial Connectors BNC (F) BULKHEAD REC Connector,Broadcast;75Ohms;Bulkhead;BNC;Gold;Female;Brass;PTFE;Gold |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | 501-1153 |
| Part # Aliases | 2121379 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 3GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Packaging | Bulk | Body Finish | Gold |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | Bulkhead |
| Connector Style | BNC | Contact Material | Beryllium Copper |
| Housing Material | Brass | Primary Material | BNC |
| Termination Style | Crimp | Mating Orientation | Bayonet |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Bulkhead |
Product Info
| Type | PanelJack | Gender | Jack |
| Features | Extended Insulation | Polarity | Standard |
| RF Family/Standard | BNC | Application Specifics | Commercial |
