点击放大查看

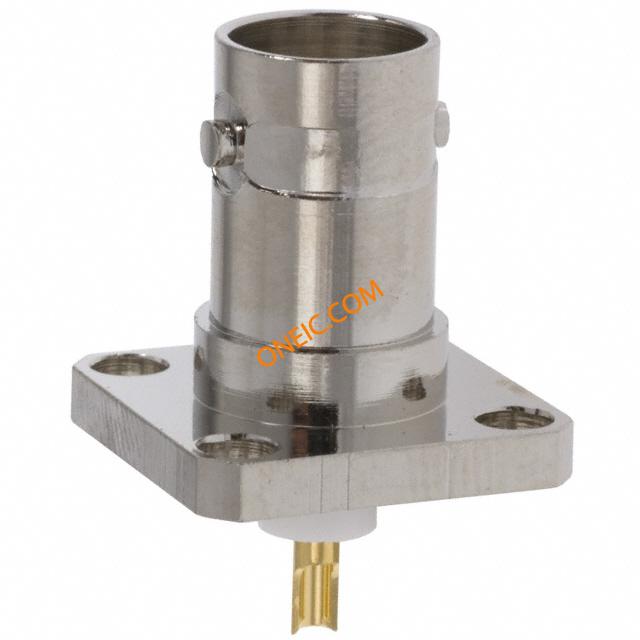

6736
| Manufacturer | |
| Description | RF Connectors BNC (F) PANEL RECEPT CONN BNC JACK STR 75 OHM SOLDER RF Connectors / Coaxial Connectors BNC (F) PANEL RECEPT Connector,Broadcast;75Ohms;BNC;Gold;Panel;Female;Brass;BerylliumCopper |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | 501-1146 |
| Part # Aliases | 2121284 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 3GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Vertical | Termination | Solder |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Square Flange | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | 4-HoleFlange | Connector Style | BNC |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Solder |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
Product Info
| Type | PanelJack | Gender | Jack |
| Features | Extended Insulation | Polarity | Standard |
| RF Family/Standard | BNC | Application Specifics | Commercial |
Environmental
| Operating Temperature | -65°C ~ 155°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
