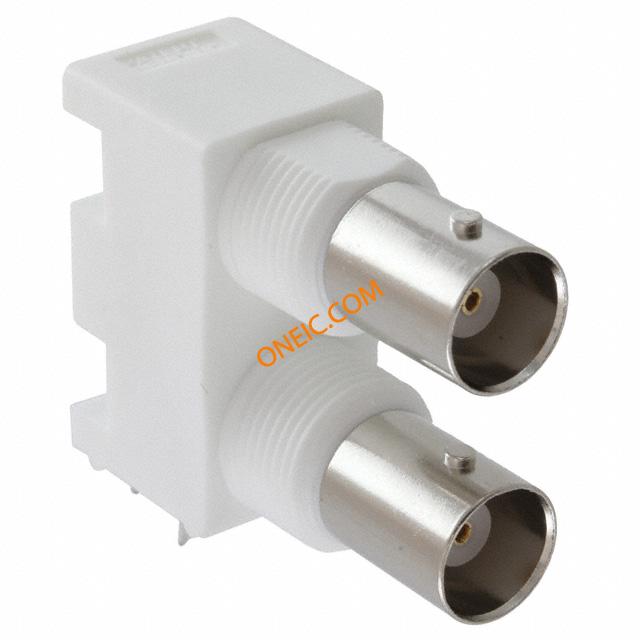

6717
| Manufacturer | |
| Description | RF Connectors BNC CIR BRD MNT 50 O Conn Dual Port BNC PL 0Hz to 1GHz 50Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors BNC CIR BRD MNT 50 O |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | 2067167 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 1G | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 1GHz |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Depth | 14.4 | Height | 29.25 |
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Right Angle | Termination | Solder |
| Body Material | Brass | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Jack, Female Sockets - Dual |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Plating - Body | Nickel | Connector Style | BNC |
| Contact Material | Brass | Length - Overall | 36.2 |
| Termination Style | Solder | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polybutylene Terephthalate (PBT) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | ||
Product Info
| Type | Dual Port BNC | Gender | PL |
| Features | Board Lock | Polarity | Standard |
| Connection Type | PCB | RF Family/Standard | BNC |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
