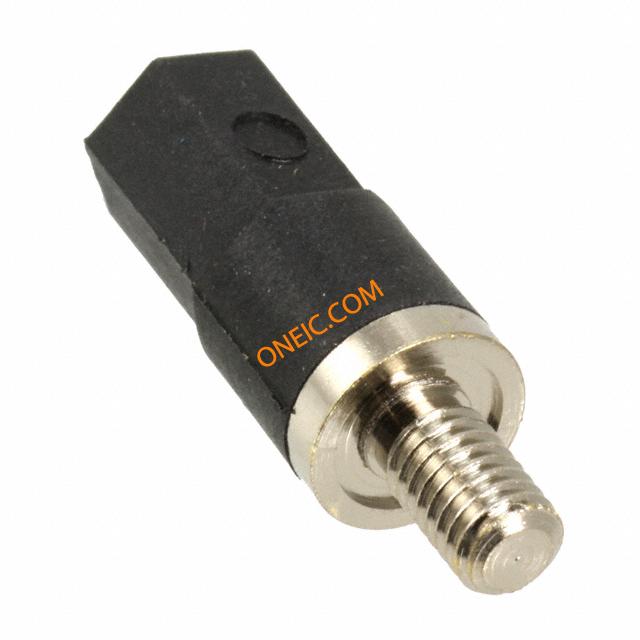

5701-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks TERMINAL STRIP BAN ADAPTER TERM STRIP JACK 10-32BLK BANANA JACK ADAPTER, 25A, SCREW, BLACK Connector;BananaJack;1700V(RMS)(Max.);25A(Max.);Brass;Nylon;Black |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1906059 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | Standards | CEMarked |
| Tariff No | 00000000 | ||
Electrical
| Voltage Rating | 1.7 kV | Current Rating (Max) | 25 A |
| Voltage - Continuous Operating (Max) (MCOV) | 1700V(RMS)(Max.) | ||
Mechanical
| Size | :.187 | Color | Black |
| Length | 1.13 in | Weight | 0.005 |
| Insulation | Insulated | Termination | Screw |
| Angle of Throw | Straight | Contact Finish | Nickel |
| Housing Finish | Nickel | Contact Material | Brass |
| Housing Material | Brass | Length - Overall | 1.130" (28.70mm) |
| Primary Material | Adapter | Color - Connectors | :Black |
| Contact Termination | :Screw | Insulation Material | Nylon, Glass Filled |
| Material - Insulation | Nylon | ||
Product Info
| Type | Terminal strip banana jack | Gender | :Jack |
| Series | :5701 | Adapter Type | ThreadedStud |
| Manufacturer | 5701Series | Equipment Type | Adapters |
| Convert To (Adapter End) | Banana Jack | Convert From (Adapter End) | 10/32" Threaded Screw |
Environmental
| Operating Temperature | + 102 C | Operating Temperature - Junction | 102°C |
