5401
| Manufacturer | |

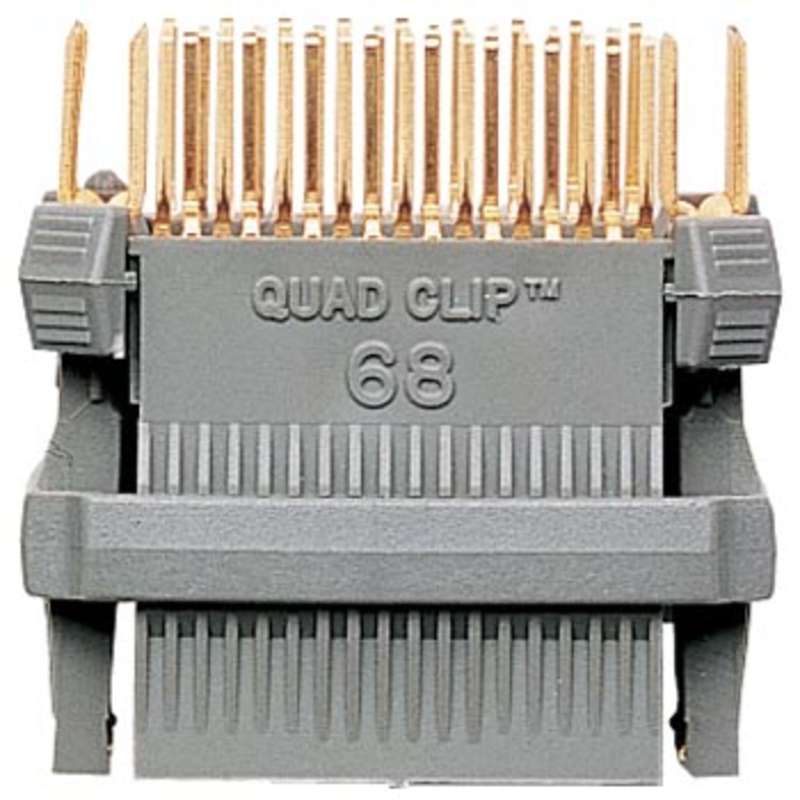

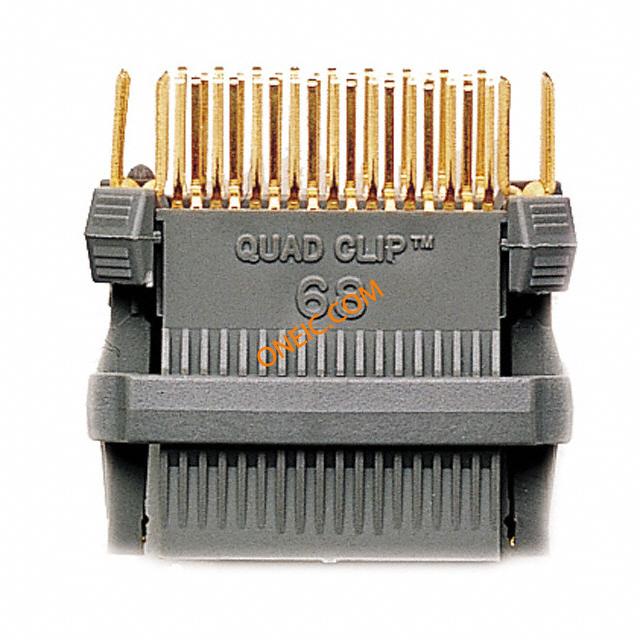

| Description | Test Sockets 68 PINS TEST CLIP 68PIN 17X17 PLCC Plcc Test Adapters Kit AdapterKitTest,PLCC;68;1A;500V(RMS)(Max.);GlassFilledNylon;102de Test clip; PLCC; PIN:68; grey; Overall len:29.97mm; gold plated PLCC Test Clip, 68 Pin, Lead Pitch 0.050" |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1659681 | Product Category | Test Sockets |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500V(RMS)(Max.) | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Weight | 0.04 kg |
| Tip Material | Beryllium Copper|Phosphor Bronze | Body Material | Glass-filled Nylon |
| Contact Finish | Gold | Material - Body | GlassFilledNylon |
| Contact Material | Beryllium Copper | Length - Overall | 29.97mm |
| Color - Connectors | grey | Number of Positions | 68 |
| Color - Actuator/Cap | Gray | Contact Material - Plating | gold plated |
| Number of Positions or Pins (Grid) | 68 (4 x 17) | ||
Product Info
| Type | PLCC | Manufacturer | Pomona |
| Product Type | Test Clip | Accessory Type | test clip |
| Equipment Type | PLCC Test Adapters | Number of Units | 1 |
| Application Specifics | PLCC | ||
Environmental
| Operating Temperature | 0 C to + 102 C | ||
