5344
| Manufacturer | |
| Description | RF Connectors BNC 50OHM CRIMP CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BNC 50OHM CRIMP RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP Connector,Coaxial;BNC(Female);Brass;BerylliumCopper;Gold;PTFE;50Ohms |
| Category |
Business
| Product | Connectors | Part # Aliases | 1912458 |
| Product Category | RF Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Impedance | 50 Ohms | Voltage Rating | 500 V |
| Frequency - Max | 4GHz | ||
Mechanical
| Length | 1.45in.(Max.) | Weight | 0.009 |
| Packaging | Bulk | Cable Type | RG-58, RG-141 |
| Cable Group | RG-58, 58A, 58C, 141, 141A | Orientation | Straight |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Brass |
| Angle of Throw | Straight | Connector Type | Assembly Instructions Connector |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | TarnishResistantBrass | Connector Style | BNC |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Crimp |
| Mating Orientation | Bayonet | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Straight | ||
Product Info
| Type | CableJack | Gender | Receptacle (Female) |
| Series | :- | Polarity | Normal |
| RF Family/Standard | BNC | ||
Documents & Media
Similar Parts
8262 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK CABLE, COAXIAL, RG-58C/U, 20AWG, 50 OHM, 500FT, BLK Coax - 50 Ohm Coax M17/155-00001 Coax Black
8262 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK Coax - 50 Ohm Coax M17/155-00001 Coax Black

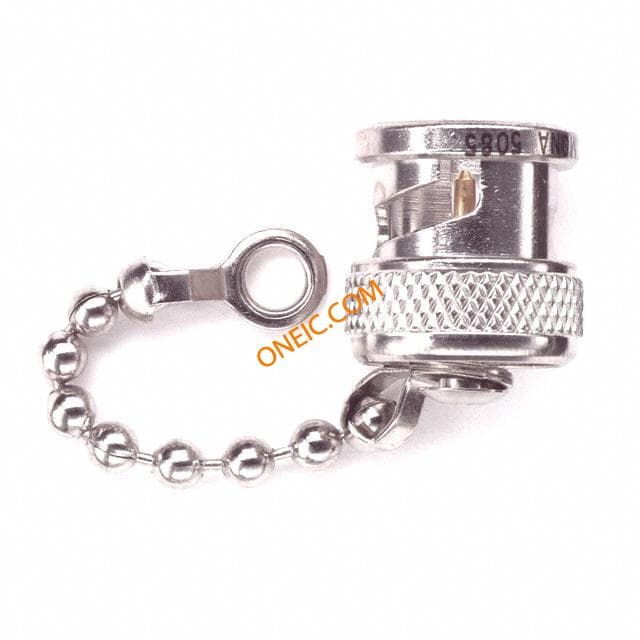

5085
Pomona Electronics
RF Connectors SHORTING CAP FOR B SHORTING CAP FOR BNC FML W/CHAIN RF Connectors / Coaxial Connectors SHORTING CAP FOR B Connector Accessories BNC Cap Straight Brass Silicone Gasket Coaxial/RF;Cap-w/Chain;BNC;Shorting;Male;Brass;forBNCFemale;Straight

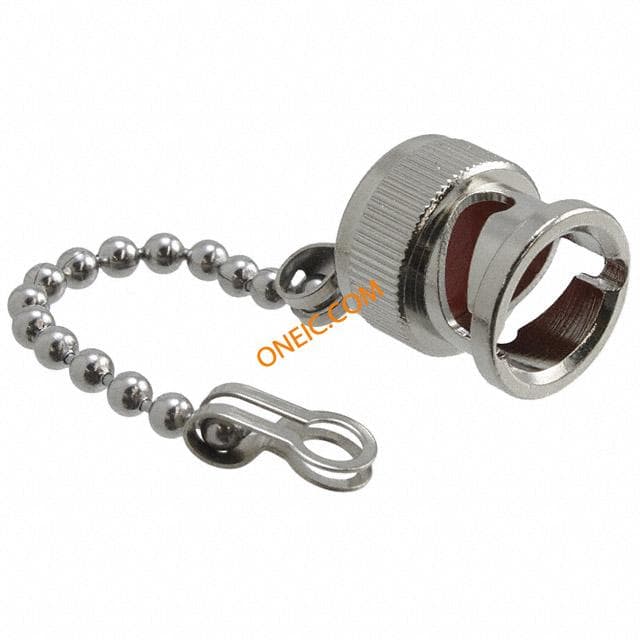

3839
