点击放大查看

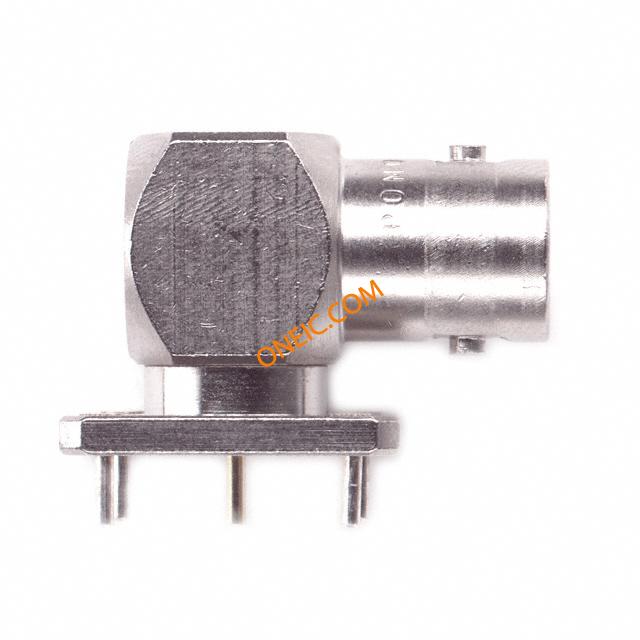

4788
| Manufacturer | |
| Description | RF Connectors RT ANG BNC F/PC MNT Conn BNC RCP 50Ohm Solder RA Thru-Hole Gold Fluke BNC (F), PC MTG, RT ANGLE CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors RT ANG BNC F/PC MNT Adapter;RightAngleBNCFemale;Brass;BerylliumCopper;Gold;50Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PCB Receptacles | Part # Aliases | 2157056 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 5 |
| Factory Pack Quantity | 6 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | Voltage - Limiting (Max) | PCB |
Mechanical
| Height | 16.76 | Length | 17.53 |
| Material | Polytetrafluoroethylene | End Style | Solder |
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Right Angle | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Through Hole, Right Angle |
| Angle of Throw | RightAngle | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | TarnishResistantNickel | Mounting Style | 4-HoleFlange |
| Connector Style | BNC | Material - Core | Brass |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Solder |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Flange | ||
Product Info
| Type | BNC | Gender | RCP |
| Polarity | Standard | RF Family/Standard | BNC |
| Assembly Configuration | Through Hole | ||
Environmental
| Operating Temperature | -65°C ~ 165°C | Operating Temperature - Junction | +165°C |
