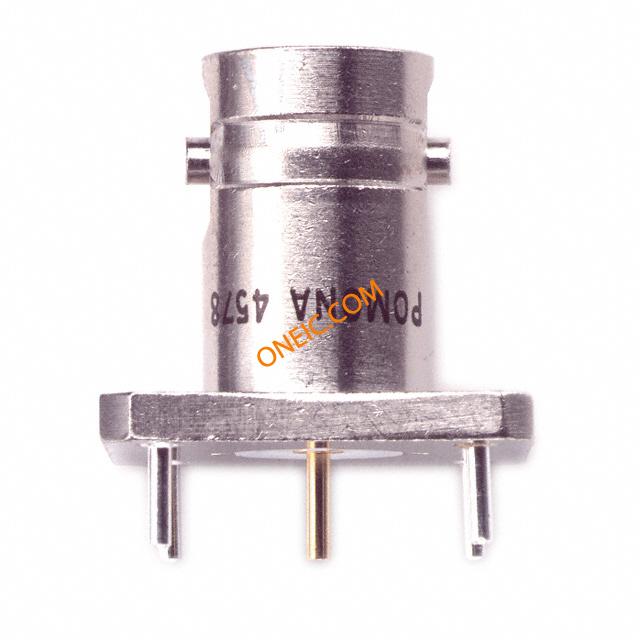

4578
| Manufacturer | |
| Description | RF Connectors BNC F/PC MNT Conn BNC RCP 50Ohm Solder ST Thru-Hole Gold Fluke ADAPTER,BNC(F),PWB PINS CONN BNC JACK STR 50 OHM PCB RF Adapters - In Series BNC F/PC MNT Connector;50Ohms;BNC;Gold;Female;Brass;BerylliumCopper;Teflon;Nickel |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 2157042 | Product Category | RF Adapters - In Series |
| Standard Package | 5 | Factory Pack Quantity | 6 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Depth | 17.5 | Height | 16 |
| Packaging | Bulk | Body Finish | Nickel |
| Termination | Solder | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Through Hole |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | 4-HoleFlange | Plating - Body | Nickel |
| Connector Style | BNC | Contact Material | Beryllium Copper |
| Housing Material | Brass | Length - Overall | 17.5 |
| Primary Material | BNC | Mating Orientation | Bayonet |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Plug | ||
Product Info
| Type | BNC | Gender | RCP |
| Connection Type | PCB | RF Family/Standard | BNC |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
PDF Document
