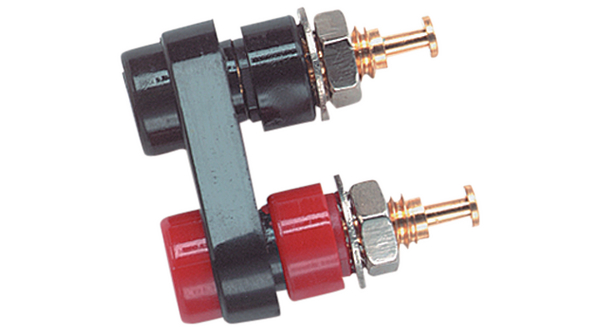

4543-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks DOUBLE PIN TIP J Conn Tip Jack F 2 POS ST Panel Mount 2 Port Fluke PIN TIP JACK (BLACK) PIN TIP JACK DOUBLE BASE BLACK PIN TIP JACK, 1500V, 5A, BLACK PinTip,Double;Black;5A;1500VDC;GoldPlatedBrassH.H.,Alloy360 Laboratory socket ø 2 mm red + black, 4543-0, Pomona |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1919273 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 6 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Breakdown | :1.5kV | Current Rating (Max) | 5 A |
| Voltage - Continuous Operating (Max) (MCOV) | 1500VDC | ||
Mechanical
| Color | Black | Depth | 21.84 |
| Height | 0.88in. | Length | 0.88in. |
| Weight | 0.009 | Packaging | Bulk |
| Insulation | Mating End Insulated | Termination | Turret |
| Body Material | Polycarbonate Thermoplastic | Hole Diameter | 0.08in. |
| Housing Color | Black | Mounting Type | Panel Mount |
| Connector Type | :Tip Jack | Contact Finish | Gold |
| Material - Body | GoldPlatedBrassH.H.,Alloy360 | Contact Material | Brass |
| Housing Material | Polycarbonate Thermoplastic | Insulation Color | :Black |
| Length - Overall | 22.35 | Color - Connectors | :Black |
| Number of Contacts | 2 | Insulation Material | Polycarbonate |
| Plug/Mating Plug Diameter | Standard Tip | ||
Product Info
| Type | Tip Jack | Gender | F |
| Series | :4543 | Equipment Type | Pin Tip Jacks |
| Number of Ports | 2 | For Use With/Related Products | :2mm Standard Tip Plug |
Environmental
| Operating Temperature | 115°C | ||
