| Manufacturer | |

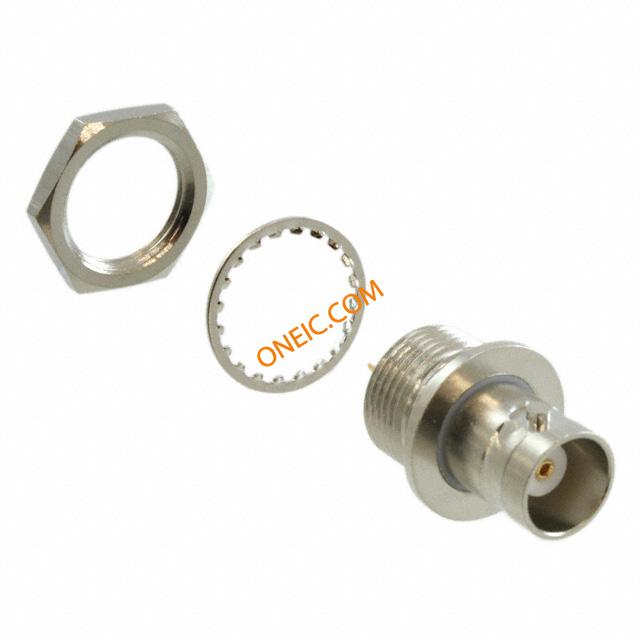

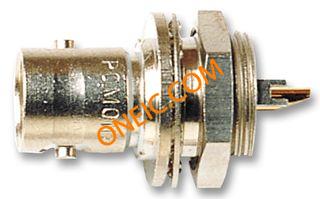

| Description | RF コネクタ FEM BNC ISOL GND RF Connectors FEM BNC ISOL GND Fluke BNC (F) ISOLATED GND CONN BNC JACK STR 50 OHM SOLDER Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold SOCKET, BNC, PANEL Connector;50Ohms(Nom.);Bulkhead;BNC;Gold;Female;Brass |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 5 | ||
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366910 | ||
Electrical
| Impedance | 50 Ohm | ||
Mechanical
| Weight | 0.2 | Packaging | Bulk |
| Cable Type | :- | Termination | :Solder |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | :Gold |
| Fastening Type | Bayonet Lock | Housing Finish | TarnishResistantBrass |
| Mounting Style | Bulkhead | Connector Style | BNC |
| Contact Material | :Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Mating Orientation | Threaded |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | :Straight Bulkhead Jack | 1st Connector Mounting Type | :Panel |
Product Info
| Type | PanelJack | Gender | Female |
| Series | :- | Features | Isolated |
Documents & Media
PDF Document
PDF Document
