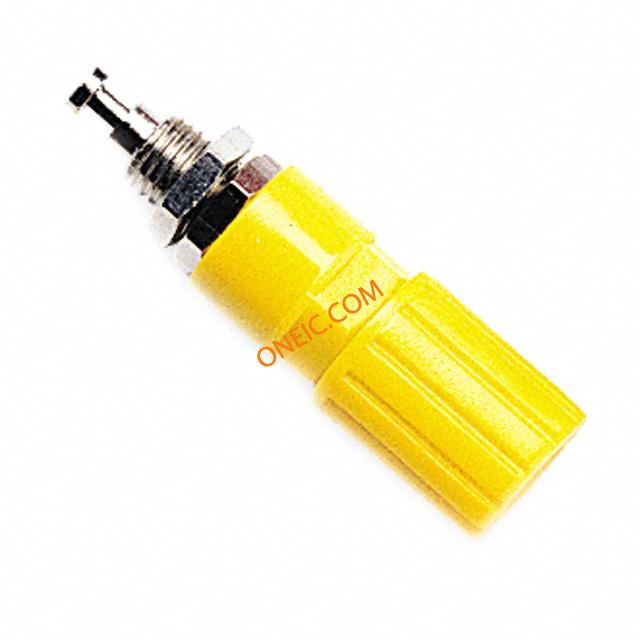

3760-4
| Manufacturer | |
| Description | Test Plugs & Test Jacks BINDING POST TIN Conn Binding Post SKT 1 POS ST Panel Mount 1 Port BINDING POST TIN PLATED YELLOW BINDING POST, 15A, TURRET, YELLOW BINDINGPOST,TINPLT.(YELLOW) |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1930246 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Yellow | Depth | 11.18 |
| Weight | 0.009 | Head Size | 0.440" OD (11.18mm) |
| Head Style | Knurled | Insulation | Insulated |
| Nut Plating | Nickel | Termination | Threaded and Turret |
| Nut Material | Brass | Housing Color | Yellow |
| Mounting Type | Panel Mount | Contact Finish | Tin |
| Plating - Body | Tin | Material - Body | Brass |
| Panel Thickness | 0.070" ~ 0.250" (1.77mm ~ 6.35mm) | Contact Material | Brass |
| Housing Material | Polycarbonate | Length - Overall | 45.21 |
| Color - Connectors | :Yellow | Number of Contacts | 1 |
| Termination Thread | 8-32 | Contact Termination | :Stud / Turret |
| Cross Hole Diameter | 0.096" (2.43mm) | Material - Insulation | Polycarbonate (PC) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Panel mount | Gender | SKT |
| Series | :3760 | Equipment Type | Binding Posts |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 115 | ||
