3752
| Manufacturer | |

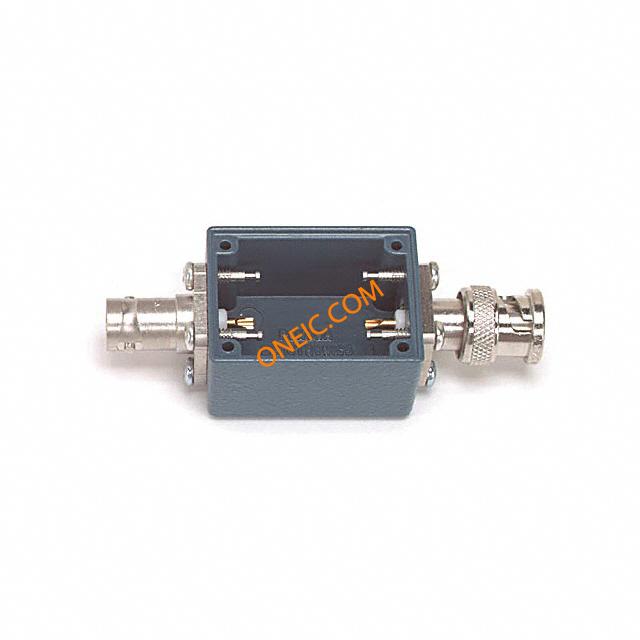

| Description | Test Connectors SHLD BOX BNC (M/F) Conn BNC Adapter RCP/PL 50Ohm ST Gold BOX BNC F/M W/CVR 1.5X1.13X0.88" Enclosure;Connectorized;Aluminum;Blue;1.5x1.13x0.88In;1FemaleBNC,1MaleBNC |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1632346 | Product Category | Test Connectors |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Impedance | 50Ohms | ||
Mechanical
| Color | Blue | Depth | 22.35 |
| Finish | ClearAnodized | Height | 0.880" (22.35mm) |
| Material | Metal, Aluminum | Area (L x W) | 1.70" (11.0cm) |
| Mounting Type | Straight | Connector Type | Miniature Size Aluminum Box With Cover |
| Contact Finish | Gold | Material - Body | ThickAluminum(Cover) |
| Contact Material | Beryllium Copper | Length - Overall | 77.98 |

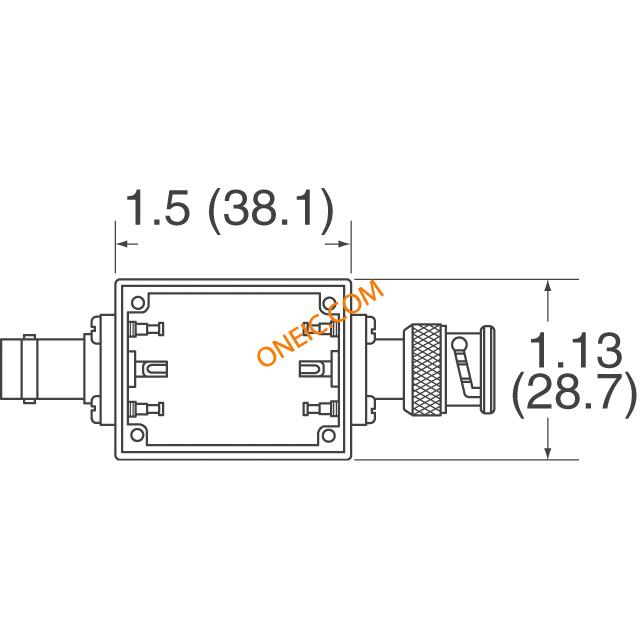

| Size / Dimension | 1.500" L x 1.130" W (38.10mm x 28.70mm) | 2nd Connector Type | BNC(M) |
Product Info
| Type | BNC Adapter | Design | Cover Included |
| Gender | RCP/PL | Features | Shielded, miniture, BNC male and female |
| Configuration | Desktop | Shipping Info | Shipped from Digi-Key |
| Container Type | Box | Equipment Type | Aluminum Box with cover |
Environmental
| Operating Temperature | -55to+150°C | ||
