3751
| Manufacturer | |

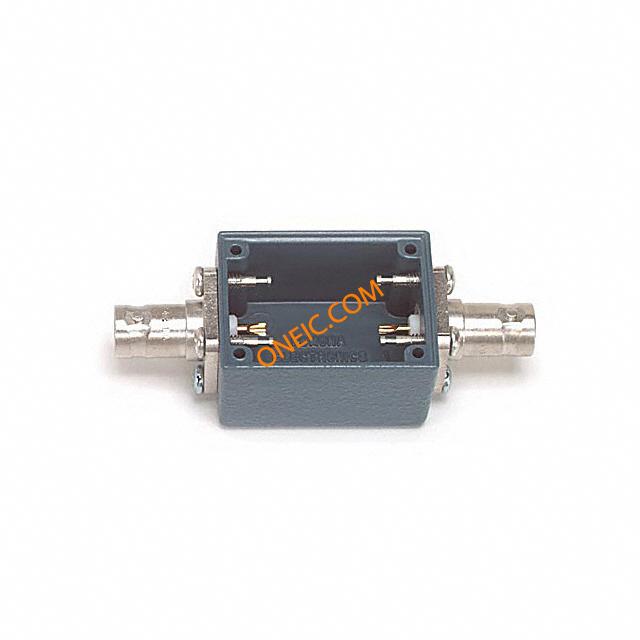

| Description | Test Connectors SHIELDED BOX MINI Conn BNC Adapter RCP/RCP 50Ohm ST Gold BOX BNC F/F W/CVR 1.5X1.13X0.88" BOX, SHIELDED, ALUMINIUM, BLUE Enclosure;Connectorized;Aluminum;Blue;1.5x1.13x0.88In;2FemaleBNC;50Ohms Aluminium Enclosure, 3751, Pomona |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1632331 | Product Category | Test Connectors |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85381000 | ||
Electrical
| Impedance | 50Ohms | ||
Mechanical
| Color | Blue | Depth | 22.35 |
| Finish | ClearAnodized | Height | 0.880" (22.35mm) |
| Weight | 0.059 | Material | Metal, Aluminum |
| Body Color | :Blue | Area (L x W) | 1.70" (11.0cm) |
| Mounting Type | Straight | Connector Type | Miniature Size Aluminum Box with Cover |
| Contact Finish | Gold | Width (Inches) | :1.13" |
| Height (Inches) | :1.5" | Material - Body | ThickAluminum(Cover) |
| Width - Overall | :29mm | Contact Material | Beryllium Copper |

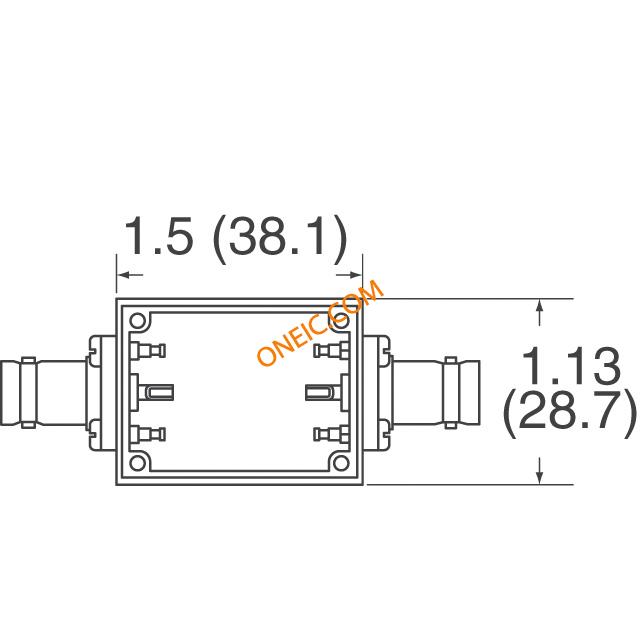

| Length - Overall | 74.68 | Size / Dimension | 1.500" L x 1.130" W (38.10mm x 28.70mm) |
| 2nd Connector Type | BNC(F) | Supplier Device Package | :Box |
| Exterior Housing Material | :Aluminium | Shell Size - Insert (Convert From) | :38mm |
Product Info
| Type | BNC Adapter | Design | Cover Included |
| Gender | RCP/RCP | Features | EMI Shielded, External Connectors |
| Configuration | Desktop | Shipping Info | Shipped from Digi-Key |
| Container Type | Box | Equipment Type | Aluminum Box with Cover |
Environmental
| Operating Temperature | -55to+150°C | ||
