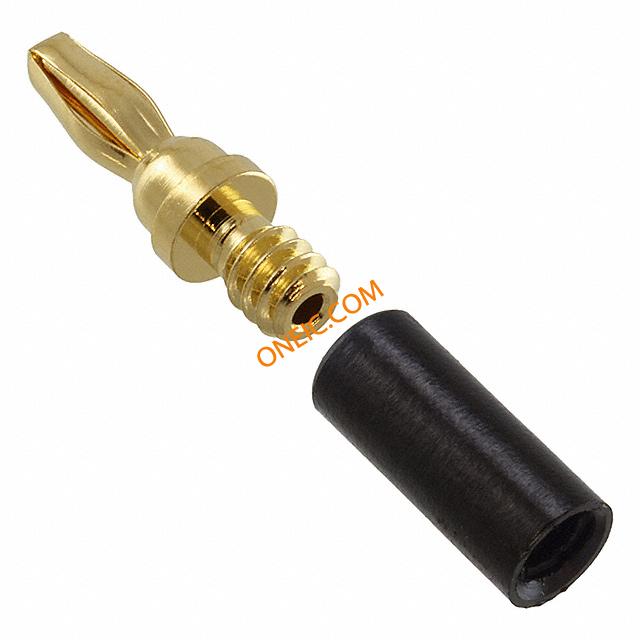

3690-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks BLK MINI BANANA PLUG Conn Banana Plug PL 1 POS Solder ST Cable Mount 1 Port MINIATURE BANANA PLUG 10PC BLACK BANANA PLUG, 5A, SOLDER, BLACK Plug;Banana,Miniature;5A;Black;Gold,overBrass;2500VDC;80degC;Nyl |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1929860 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 5 A |
Mechanical
| Size | Mini | Color | Black |
| Height | 0.89in. | Length | 0.89 in |
| Weight | 0.009 | Diameter | 0.12in. |
| Packaging | 10 per Bag | Insulation | Insulated |
| Wire Gauge | 20-22 AWG | Termination | Solder |
| Body Material | Polyamide (PA), Nylon | Housing Color | Black |
| Mounting Type | Cable Mount | Contact Finish | Gold |
| Material - Body | Brass | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 22.61 |
| Material - Frame | GoldPlatedBerylliumCopper | Primary Material | Banana |
| Color - Connectors | :Black | Number of Contacts | 1 |
| Contact Termination | :Solder | Insulation Material | Nylon |
| Length - Termination | 0.30in. | Material - Insulation | Nylon |
| Plug/Mating Plug Diameter | Miniature | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Solderless | Gender | PL |
| Series | :3690 | Manufacturer | 3690Series |
| Equipment Type | Banana Plugs | Number of Ports | 1 |
Environmental
| Operating Temperature | + 80 C | Operating Temperature - Junction | 80°C |
Documents & Media
Similar Parts
24-6337-0027
Kester
Solder 63/37 .031 DIA. 1LB SPOOL SOLDER RA 21AWG 63/37 1LB SolderWire;highlyactiveRAflux;Sn63Pb37;.031dia;core66;1lb
$463.7648
Details

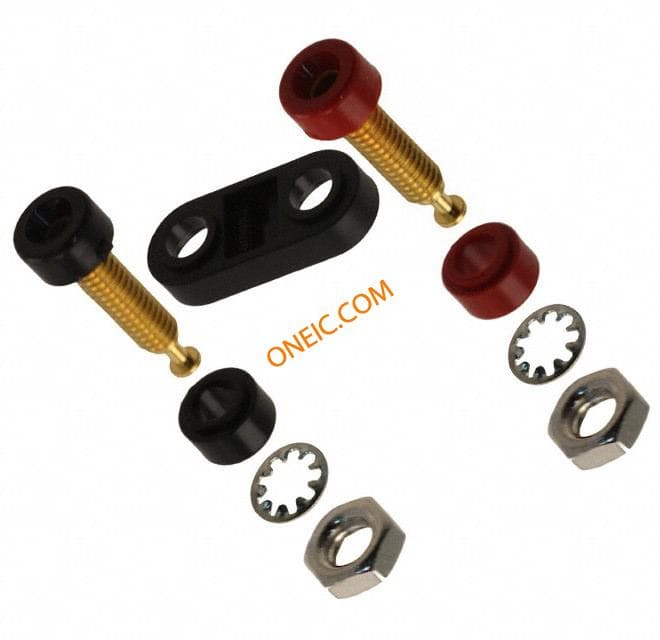

2143-0
