3603
| Manufacturer | |

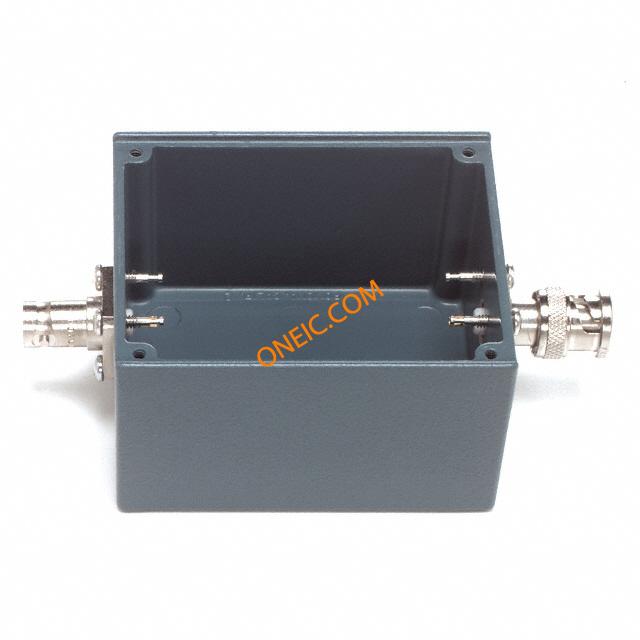

| Description | Test Connectors SHIELDED BOX Connector Accessories Shielded Housing With 2 BNC F/M SHIELD BOX G W/CVR BNC FML-MALE BOX, SHIELDED, ALUMINIUM, BLUE Enclosure;Connectorized;Aluminum;Blue;3x2.63x1.65In;1FemaleBNC,1MaleBNC |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1929849 | Product Category | Test Connectors |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85381000 | ||
Electrical
| Impedance | 50Ohms | ||
Mechanical
| Color | Blue | Depth | 66.8 |
| Finish | ClearAnodized | Height | 1.650" (41.91mm) |
| Weight | 0.191 | Material | Metal, Aluminum |
| Body Color | :Blue | Area (L x W) | 7.89" (50.9cm) |
| Connector Type | Shielded Housing | Width (Inches) | :2.63" |
| Height (Inches) | :3" | Material - Body | ThickAluminum(Cover) |
| Width - Overall | :67mm | Length - Overall | 76.2 |
| Size / Dimension | 3.000" L x 2.630" W (76.20mm x 66.80mm) | 2nd Connector Type | BNC(M) |
| Supplier Device Package | :Box | Exterior Housing Material | :Aluminium |
| Shell Size - Insert (Convert From) | :76mm | ||
Product Info
| Type | BNC Housing | Design | Cover Included |
| Features | EMI Shielded, External Connectors | Configuration | Desktop |
| Shipping Info | Shipped from Digi-Key | Container Type | Box |
Environmental
| Operating Temperature | 150°C | ||
