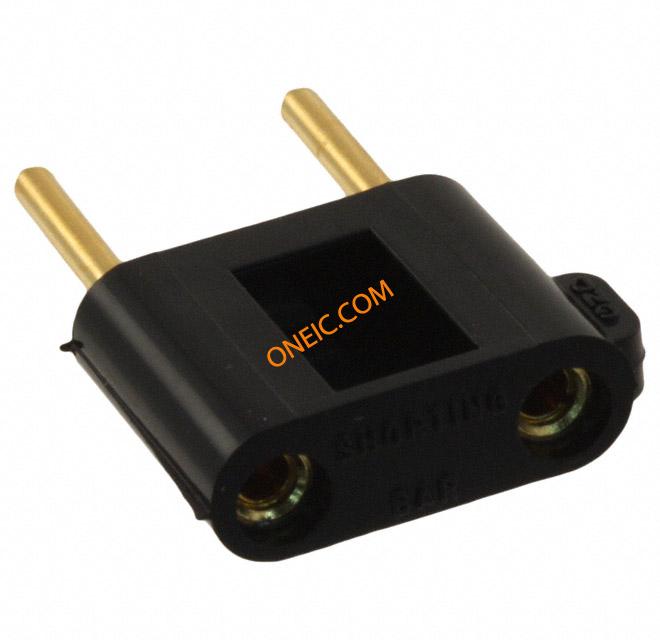

3452-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks DUAL TIP JACK BLACK Conn Tip Jack/Tip Plug F/PIN 2 POS ST 2 Port Test Plugs & Test Jacks PIN TIP PLUG, SHORTED (BLACK) PLUG DBL PIN TIP SHORTED BLK SHORTING BAR PIN TIP PLUG, 3000V, 5A, BLACK PinTip,ShortingBar;Black;5A;3000V(RMS)(Max.);degC(Max.);0.08in. PINTIPPLUG,SHORTED(BLACK) |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1929191 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 6 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 33 V | Voltage - Breakdown | :3kV |
| Current Rating (Max) | 5 A | Voltage - Continuous Operating (Max) (MCOV) | 3000V(RMS)(Max.) |
Mechanical
| Color | Black | Height | 1.2in. |
| Length | 12.7 mm | Weight | 0.002 |
| Packaging | Bulk | Insulation | Insulated |
| Termination | Solderless | Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Hole Diameter | 0.08in. | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Gold | Material - Body | BrassperQQ-B-626,Alloy360 |
| Contact Material | Beryllium Copper | Housing Material | Acrylonitrile Butadiene Styrene |
| Insulation Color | :Black | Length - Overall | 30.48 |
| Number of Contacts | 2 | Insulation Material | Acrylonitrile Butadiene Styrene (ABS) |
| Plug/Mating Plug Diameter | Standard Tip | ||
Product Info
| Type | Pin Tip Plug | Gender | F/PIN |
| Features | Shorting Bar | Equipment Type | Banana Plugs |
| Number of Ports | 2 | For Use With/Related Products | :2mm Standard Tip Jack |
Environmental
| Operating Temperature | + 122 C | ||
