2249-C-12
| Manufacturer | |
| Description | RF Cable Assemblies BNC M/M 12 Cable Assembly RG58C/U 0.305m 20AWG BNC to BNC M-M RF Cable Assemblies BNC M/M 12" RF Cable Assemblies BNC (M), RG58C/U CABLE BNC MALE RG-58C/U 12" TEST LEAD, 50R RG58, 30CM CableAssy;12in.;20AWG;RG58C/U;NonBooted;BlackJacket;ULListed BNC Male Patch Cable 50 Ohms, 1', RG58C/U |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1931229 | Product Category | RF Cable Assemblies |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | UL,CE |
| Tariff No | 90303100 | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | :60VDC |
| Voltage - Input (Min) | 500VAC | Voltage - Supply (Min) | 500VAC |
Mechanical

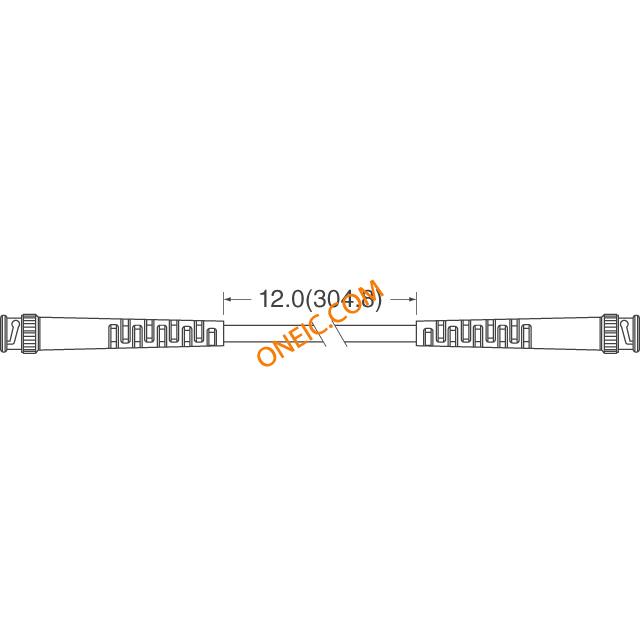

| Color | Black | Length | 12.0" (304.8mm) |
| Weight | 0.4 | Shielding | TinnedCopperBraid |
| Cable Type | RG58C/U | Wire Gauge | 20 |
| Cable Group | :Test | Cable Length | 0.305 |
| Jacket Color | Black | 1st Connector | BNC Male Plug |
| 2nd Connector | BNC Male Plug | Wire Diameter | 20AWG |
| Connector Type | BNC | Contact Finish | Gold |
| Contact Material | Brass | Insulation Color | :Black |
| Connector - Cable | Straight | 2nd Connector Type | :BNC Plug |
| Color - Connectors | :Black | Conductor Material | TinnedCopper |
| Length - Lead Wire | :30cm | 1st Connector Gender | Plug (Male) |
| 2nd Connector Gender | Plug (Male) | Material - Insulation | Polyethylene |
| Number of Cable Pairs | 19×33 | ||
Product Info
| Style | BNC to BNC | Gender | M-M |
| Series | BNC | Features | Shielded |
| Function | NonBooted | Application Specifics | ForRFtransmissionsystems,thinnestLAN,testandmeasurement |
Environmental
| Temperature Rating | -40to+85°C | Operating Temperature | -40°C ~ 85°C |
