2098
| Manufacturer | |

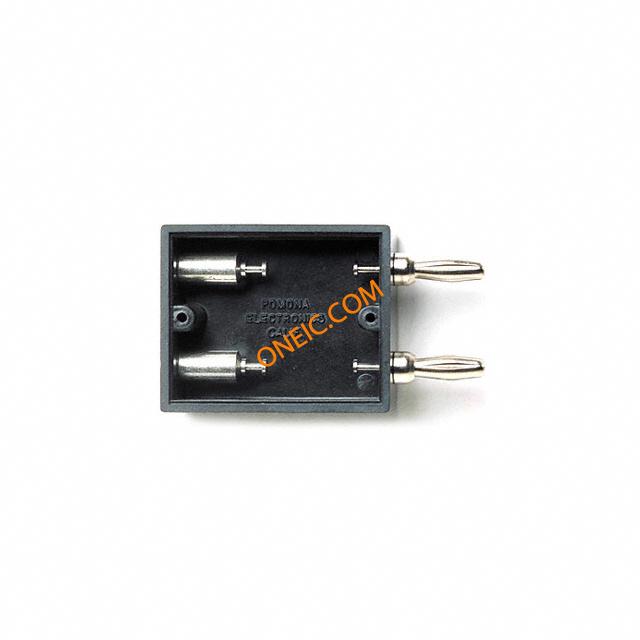

| Description | Test Plugs & Test Jacks BAN PL/BNJK W/BOX Conn Banana Adapter PL/F 2 POS ST 2 Port BOX PHENOLIC W/BANANA PLUG&JACKS Enclosure;Connectorized;Phenolic;Black;1.75x1.44x0.69In;2Male,2FemaleBanana |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1937940 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 15 A | ||
Mechanical

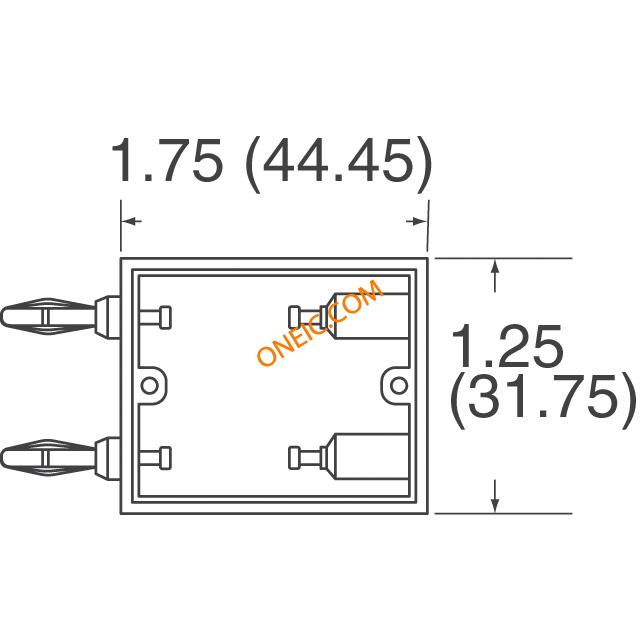

| Size | 1.750" L x 1.440" W (44.45mm x 36.58mm) | Color | Black |
| Depth | 62.23 | Finish | NickelPlated |
| Height | 0.690" (17.53mm) | Material | Plastic, Phenolic |
| Area (L x W) | 2.52" (16.3cm) | Housing Color | Black |
| Mounting Type | Straight | Connector Type | BananaJack |
| Contact Finish | Nickel | Material - Body | Brass |
| Contact Material | Beryllium Copper Alloy | Housing Material | Phenolic |
| Length - Overall | 36.58 | Size / Dimension | 1.750" L x 1.440" W (44.45mm x 36.58mm) |
| 2nd Connector Type | DoublePlug | Number of Contacts | 2 |
Product Info
| Type | Square pin receptacle | Design | Cover Included |
| Gender | PL/F | Features | External Connectors |
| Card Type | Box | Configuration | Desktop |
| Shipping Info | Shipped from Digi-Key | Container Type | Box |
| Equipment Type | Banana Plugs | Number of Ports | 2 |
Environmental
| Operating Temperature | + 150 C | ||
