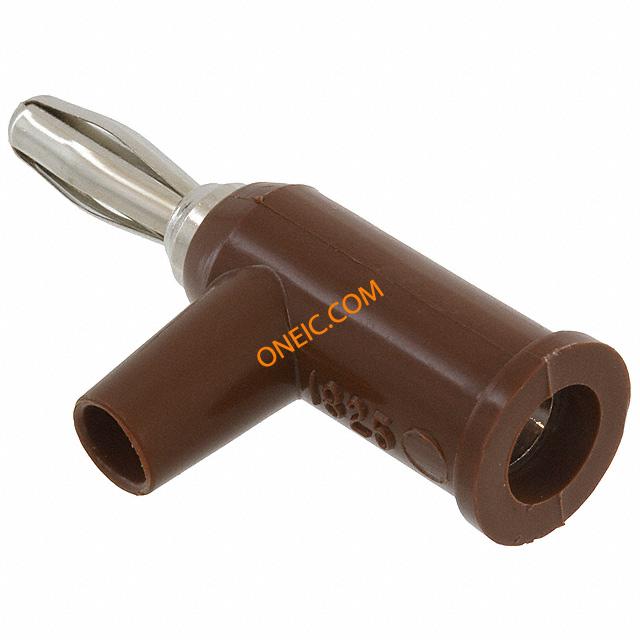

1825-1
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA PLUG BROWN Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG (BROWN) BANANA PLUG W/SHIELD 10PCS BROWN BANANA PLUG, 15A, SCREW, BROWN BananaJack;BananaJack;15A;Brown;BerylliumCopper;5000Vrms(Max.) |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1937314 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Brown | Width | 0.44in. |
| Height | 1.55in. | Length | 1.55 in |
| Weight | 0.064 | Diameter | 0.166in. |
| Packaging | 10 per Bag | Insulation | Insulated |
| Wire Gauge | 18-22 AWG | Termination | Screw |
| Body Material | Polypropylene (PP) | Housing Color | Brown |
| Mounting Type | Cable Mount | Contact Finish | Nickel |
| Mounting Style | Panel | Material - Body | BerylliumCopper |
| Contact Material | Brass | Housing Material | Acrylonitrile Butadiene Styrene |
| Length - Overall | 39.36 | Material - Frame | BerylliumCopper |
| Primary Material | Banana | Color - Connectors | :Brown |
| Number of Contacts | 1 | Contact Termination | :Screw |
| Insulation Material | Polypropylene | Length - Termination | 0.55in. |
| Material - Insulation | ABS(Model4899PolyphenyleneSulfide) | Plug/Mating Plug Diameter | Standard |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Solderless with safety collar | Gender | PL |
| Series | :1825 | Features | Set Screw, Safety Collar |
| Manufacturer | 1825Series | Equipment Type | Banana Plugs |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | + 50 C | Operating Temperature - Junction | +122°F |
