1286
| Manufacturer | |

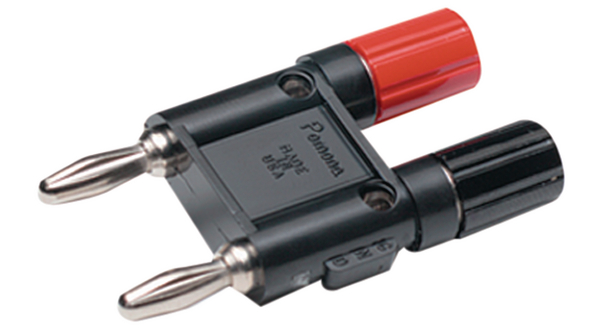

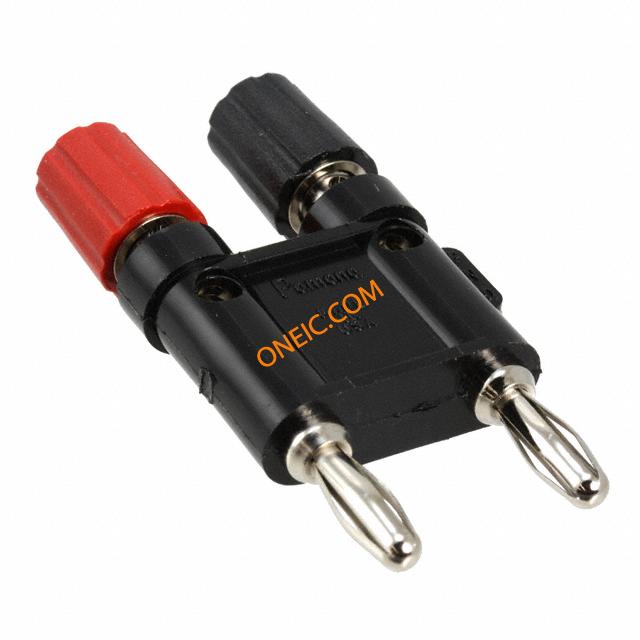

| Description | Test Plugs & Test Jacks BIND PST-DBL BAN PLG Conn Banana-Binding Post Adapter PL/F 2/2 POS ST 2 Port Fluke DBL BIND POST/BANANA PLUG DOUBLE BANANA PLUG W/BIND POSTS DOUBLE BANANA PLUG, 15A Plug;BananaPlug;15A(Max.);2500VDC;Brass;Polycarbonate(BindingPost) Plug/binding post ø 4 mm red + black 30 VAC 60 VDC, 15 A 63 mm, 1286, Pomona |
| Category |
Business
| Part # Aliases | 2157088 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Black, Red | Depth | 29.72 mm |
| Length | 57.91 mm | Weight | 0.027 |
| Insulation | Insulated | Housing Color | Black |
| Mounting Type | Straight | Contact Finish | Nickel |
| Material - Body | Brass | Contact Material | Brass |
| Housing Material | Acrylonitrile Butadiene Styrene | Length - Overall | 2.280" (57.91mm) |
| Color - Connectors | :Black / Red | Number of Contacts | 2/2 |
| Contact Termination | :Screw | Insulation Material | Polycarbonate |
| Material - Insulation | Polycarbonate(BindingPost) | 1st Connector Mounting Type | :- |
Product Info
| Type | Double with Binding Posts | Gender | PL/F |
| Series | :- | Equipment Type | Banana Plugs |
| Number of Ports | 2 | Convert To (Adapter End) | Banana Plug, Double, Stackable |
| Convert From (Adapter End) | Binding Post | ||
Environmental
| Operating Temperature | + 50 C | Operating Temperature - Junction | 50C |
