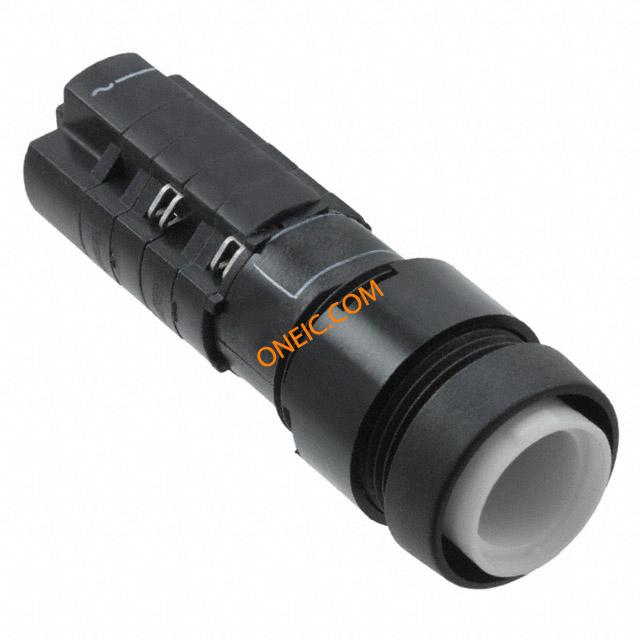

1.15108.5520000
| Manufacturer | |
| Description | Switch Push Button N.O./N.C. DPDT Round Button 4A 250VAC 220VDC Solder Panel Mount SWITCH PUSH 4PST 4A 250V Pushbutton Switches |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1.15108.552/0000 | Standard Package | Bulk |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | 4PST (2-NO, 2-NC) | Voltage Rating | 220 V |
| Switch Function | On-Off, Off-On | Current Rating (Max) | 4@250VAC A |
| Voltage - Input (Min) | 250 V | Switch Function/Rating | N.O./N.C. |
Mechanical
| Depth | 18 | Height | 57 |
| Packaging | Bulk | Weight (g): | 12.80000 |
| Contact Form | DPDT | Actuator Type | Round, Button |
| Mounting Type | Panel Mount | Terminal Type | Solder |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Contact Material | Silver | Length - Overall | 18 |
| Termination Style | Solder Lug | Illumination Color | Multiple |
| Actuator Style/Size | Round Button | Switch Actuation Level | DPDT |
| Panel Cutout Dimensions | Circular - 16.20mm Dia | Illumination Type, Color | Filament Lamp |
| Material - Housing & Prism | N/A/Polyamide 6 | ||
Product Info
| Type | Standard, Illuminated | Series | LUMOTAST 75 |
| Illumination | Sold Separately | Electrical Life | 60000 |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -25 to 55 °C |
