3244164
| Manufacturer | |
| Description | DIN Rail Terminal Blocks MSB 2.5-RZ GRAY Conn Feed-Thru F 2 POS Cable Mount 24A TERM BLOCK MSB25-RZ Phoenix Contact 2 路 无熔丝端子块, 安装板, 弹簧笼端接, 800 V |
| Category |
Business
| Other Names | MSB 2 5-RZ | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 20A | Voltage - UL | 600V |
| Current - IEC | 24A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Current Rating (Max) | 24 A |
| Voltage - Input (Min) | 800V | ||
Mechanical
| Color | Gray | Depth | 5.2 |
| Width | 5.2 mm | Height | 22 mm |
| Length | 1.260" (32.00mm) | Material | 聚酰胺 |
| Wire Gauge | 28 | Height (Max) | 0.866" (22.00mm) |
| Housing Color | Gray | Mounting Type | Cable Mount |
| Mounting Style | DIN Rail | Number of Rows | 2 |
| Housing Material | Polyamide | Length - Overall | 32 |
| Stripping Length | 8mm | Terminal - Width | 5.2mm |
| Termination Rows | 弹簧笼 | Termination Style | Spring Cage |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm2 | 0.08-4mm² | ||
Product Info
| Type | Feed-Thru | Gender | F |
| Features | Engagement Pin | Number of Lines | 2 |
| Number of Levels | 1 | ||
Environmental
| Operating Temperature | +130°C | ||
Similar Parts
0824638
Phoenix Contact
Terminal Block Tools & Accessories UC-TMF 5 CUS UNICARD SHEETS LABEL TERM BLOCKS Terminal Block Tools & Accessories UC-TMF 5 CUS 1 sheet is 1 piece
3024423
Phoenix Contact
Terminal Block Tools & Accessories D-MZB 1.5 BU Connector Accessories End Cover END COVER FOR MOD TERM BLOCKS End cover for modular terminal blocks D-MZB 1,5 BU DINRailTerminalBlocksD-MZB1.5BU
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker
0818153
Phoenix Contact
Unspecified Tools & Accessories UC-TMF 5 UNICARD 96 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=96 LABELS Phoenix Contact 0818153 Marker Card Terminal Block, Series: UC-TMF Terminal Block Tools & Accessories UC-TMF 5 UNICARD 96 SECTION Marker;TermBlk;UniCard;5.2mm;96labelspercard;white Phoenix Contact UC-TMF 系列 标记卡
0828744
Phoenix Contact
ターミナルブロック・ツールとアクセサリ UCT-TMF 5 TERM BLOCK MARKER 5.2MM WHITE Terminal Block Tools & Accessories UCT-TMF 5 Connector Accessories Terminal Block Marker Polycarbonate White UCT-TMF5
0808642
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 UNPRINTED Cable Accessories Zack Strip Polyamide White 10 SECTION ZACK MARKER STRIP Phoenix Contact 0808642 Marker Strip Terminal Block, Series: ZBF ZACK STRIP Zackstrip,flat,unprinted:10-section, Phoenix Contact ZBF 系列 标记条

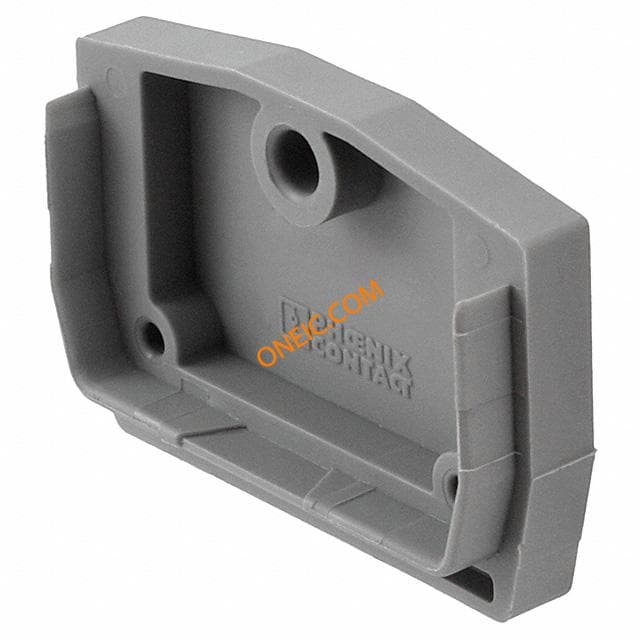

3024177
