3213140
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | CLIPLINE UK | Other Names | UKH 70 |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 192A | Voltage - UL | 1000V |
| Current - IEC | 192A | Voltage - IEC | 1000V |
| Voltage Rating | 1000 V | Current Rating (Max) | 192A |
| Voltage - Input (Min) | 1000V | ||
Mechanical
| Color | Gray | Depth | 20.3 |
| Width | 20.3 mm | Height | 78.3 mm |
| Length | 70.5 mm | Wire Gauge | 4 → 3/0 AWG |
| Termination | Screw | Mounting Type | NS 32, NS 35/7.5, NS 35/15 |
| Housing Material | Polyamide | Length - Overall | 70.5 |
| Stripping Length | 24mm | Terminal - Width | 20.3mm |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Color - Connectors | Grey | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 3/0-6 AWG | Wire Gauge or Range - mm2 | 16-95mm² |
Product Info
| Type | Feed-Through Modular Terminal Blocks | Series | UKH |
| Number of Layers | 单层 | Number of Levels | 1 |
| Connection Method | Screw | ||
Documents & Media
PDF Document
Similar Parts
1201015
Phoenix Contact
$289.5379
Details
0806602
Phoenix Contact
$104.4480
Details
1201662
Phoenix Contact
$13.3001
Details

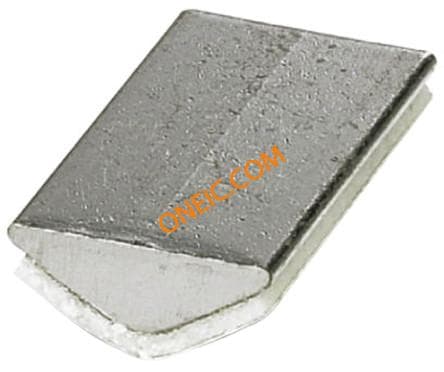

3009228
