3212011
| Manufacturer | |
| Description | DIN Rail Terminal Blocks PTS 2,5-QUATTRO-PE Conn Ground Modular Terminal Blocks F 4 POS CONN TERM BLOCK 2,5mm Quattro Ground Terminal Conn;TermBlk;DINRail;Ground;Push-In;4Conn;26-12AWG;Green/YL;NS35/7.5,NS35/15 Phoenix Contact 绿色/黄色 4 路 接地端子块 PTS 2.5-QUATTRO-PE, 推入式端接 26 → 12 AWG, 长 49mm |
| Category |
Business
| Tradename | CLIPLINE PT | Other Names | PTS 2 5-QUATTRO-PE |
| Product Category | DIN Rail Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Mechanical
| Color | Green, Yellow | Depth | 5.2 |
| Width | 5.2mm | Height | 50.5mm |
| Length | 49mm | Wire Gauge | 26 → 12 AWG |
| Termination | Push In | Number of Rows | 4 |
| Housing Material | Polyamide | Length - Overall | 49 |
| Stripping Length | 10mm | Terminal - Width | 5.2mm |
| Termination Rows | 推入式 | Termination Style | Push In, Spring |
| Number of Contacts | 4 | Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm2 | 0.14-4mm² | Number of Positions/Bay/Row | 4 |
Product Info
| Type | Ground Modular Terminal Blocks | Gender | F |
| Series | PT | CAD Drawing | 3D CAD 模型 |
| Number of Lines | 4 | Number of Levels | 1 |
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0818108
Phoenix Contact
Unspecified Tools & Accessories UC-TM 5 UNICARD 90 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=96 LABELS Phoenix Contact 0818108 Marker Card Terminal Block, Series: UC-TM Terminal Block Tools & Accessories UC-TM 5 UNICARD 90 SECTION MarkerCard;TermBlk;5.2mm;96labelspercard;white Phoenix Contact UC-TM 系列 标记卡
0810588
Phoenix Contact
Terminal Block Tools & Accessories GBS 5-25X12 SNAP ON MARKER CARRIER Group Marker Label GBS 5-25x12 Connector Accessories Group Marker Label Polyamide Gray GROUPMARKERLABEL Phoenix Contact GBS 系列 端子标记
0809298
Phoenix Contact
Terminal Block Tools & Accessories GBS-ZB/26X6 GROUP MARKING LABEL 29MM Group Marker Label GBS-ZB/26x6 Labels Plastic Label Polyamide/Polycarbonate Gray Phoenix Contact GBS 系列 端子标记
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH

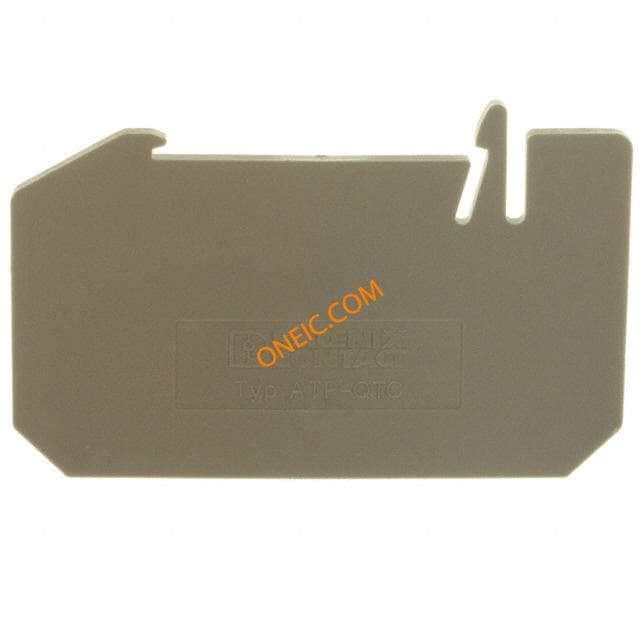

3206209
